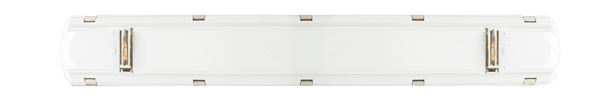

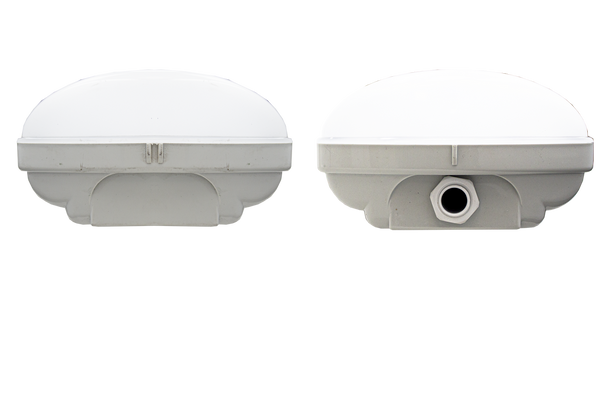

Linear Vapor Tight LED Fixture - Durable and Efficient Lighting Solution

The Linear Vapor Tight LED Fixture is a robust and highly efficient lighting solution designed specifically for challenging environments. It boasts a length of 4 feet and operates at a power consumption of 40W. With a selectable color temperature of 5000K and an adjustable lumen output of 5000LM, this fixture is perfect for various industrial applications.

Key Features and Benefits

Selectable color temperature of 5000K for optimal brightness
Adjustable lumen output of 5000LM, providing up to 125LM/W efficacy
0-10V dimmable functionality allows for customized light control
Constructed with highly impact-resistant polycarbonate
UV-stabilized polycarbonate diffuser eliminates glare, ensuring comfortable lighting
Even light distribution enhanced by diffuser crystals
Sealed with ten stainless steel clips for maximum durability
Operates in a wide temperature range from -22°F to 104°F
Long lifespan of 50,000 hours for consistent, reliable lighting
IP-rated for wet locations, making it ideal for humid and wet environments
Certified by UL and DLC, ensuring top-notch safety and performance standards

Technical Specifications

Voltage: 120-277VAC 50/60Hz
Wattage: 40W
Power factor: >0.95
Total lumens: 5000LM
Beam angle: Horizontal 103.9° & Vertical 113.8°
Operating temperature: -22°F to 104°F
Lifespan: 50,000 hours
IP rating: Suitable for wet locations

Common Uses

Perfect for use in workshops, garages, canopies, parking garages, cold storage facilities, food processing facilities, farmyards, and other harsh, humid, and wet environments. This fixture ensures dependable lighting even in the most demanding conditions.

RESOURCES AND DOWNLOADS

Linear Vapor Tight LED Fixture Spec Sheet

Westgate Resources and Downloads

Details

CRI:	80
Color Temperature:	5000K
Compliance & Warranty:	5 Year Warranty\|DLC Standard
Country of Origin:	CHINA
Dimming Type:	0-10V
Finish / Color:	White
Housing Material:	Steel\|Polycarbonate
IP Rating:	IP66
Item Height (Inch):	6.811023622047244
Item Length (Inch):	50.787401574803155
Item Weight (LBS):	8.377565963025347
Item Width (Inch):	3.858267716535433
L70 Expected Life (hours):	50,000hr
LED Type:	Edison 2835
Lens Material:	Opal Polycarbonate
Lumen Output:	5000
Operating Temperature:	-22°F to 104°F
Power Factor:	>0.95
Ships From:	CA
THD:	<19
Voltage:	120-277V
Wattage:	40W
