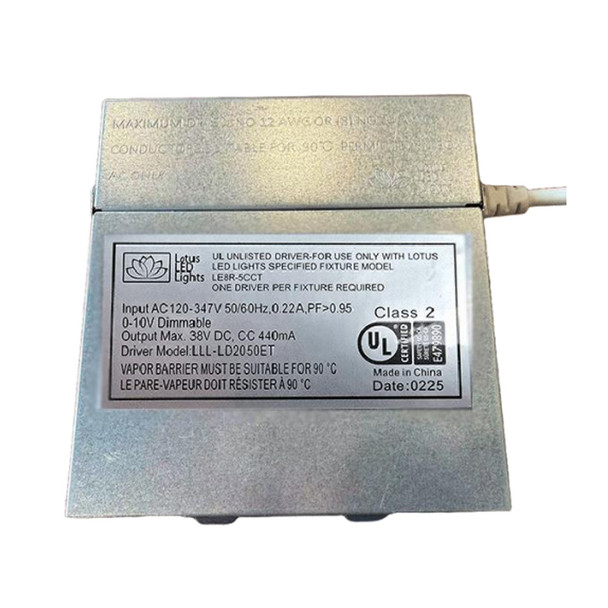

Lotus LED Lights LLL-LD2050ET, 120-347V, 0-10V Dimmable, 440mA Constant Current, Max 38V DC Output

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights LLL-LD2050ET, 120-347V, 0-10V Dimmable, 440mA Constant Current, Max 38V DC Output

$36.15
  • SKU: LLL-LLL-LD2050ET-FP
  • MPN: LLL-LD2050ET-FP

Quick Overview

120-347V 0-10V dimmable constant-current LED driver for Lotus LE8R fixtures, delivering 440mA output up to 38V DC with high power factor and quick-connect wiring.

UL Listed
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights LLL-LD2050ET is a dedicated constant-current driver engineered for compatible Lotus recessed fixtures, including the LE8R series. Designed for broad commercial voltage compatibility and smooth 0-10V dimming, it provides reliable performance for professional installations.

Key Features and Benefits

  • Wide 120-347V input supports use across residential, commercial, and light industrial electrical systems
  • 0-10V dimming interface enables precise light-level control for energy savings and comfort
  • High power factor greater than 0.95 helps improve electrical efficiency
  • UL Listed and cUL Listed for safety compliance in approved applications
  • Built for use with Lotus compatible fixtures to maintain certified system performance

Specifications

  • Model: LLL-LD2050ET
  • Input Voltage: 120-347V AC
  • Output Current: 440mA constant current
  • Maximum Output Voltage: 38V DC
  • Dimming Control: 0-10V (grey negative, purple positive)
  • Connection Box Capacity: 5 x 12 AWG or 8 x 14 AWG conductors
  • Cable Connectors: 2 knock-outs, 7/8"
  • Mounting: On Lotus RIP8 plates or directly on joist

Common Uses

Ideal for recessed lighting projects using Lotus LE8R-compatible fixtures in homes, multifamily buildings, offices, and commercial interiors where dependable dimming and multi-voltage operation are required.
