LPNG Series Commercial LED Backlit Panel Light, Multi-Power, Multi-CCT, 2x2

No reviews yet Write a Review
Ask Questions

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LPNG Series Commercial LED Backlit Panel Light, Multi-Power, Multi-CCT, 2x2

$56.85
  • SKU: WM-LPNG-2X2-MCTP
  • UPC: 845060057751
  • MPN: LPNG-2X2-MCTP
  • Shipping: Free Shipping

Quick Overview

This 2x2 LED panel light offers selectable color temperatures of 3500K, 4000K, and 5000K, with adjustable lumen outputs of 2200LM, 3300LM, and 4400LM.

In Stock & Ready To Ship!
Current Stock:Only left: 96

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Indoor Commercial LED Backlit Panel Light

This versatile LED backlit panel light is the ideal lighting solution for a variety of commercial settings, including hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, and education facilities.

Key Features and Benefits

  • Selectable color temperatures: 3500K, 4000K, 5000K to match different environments.
  • Adjustable lumen outputs: 2200LM, 3300LM, 4400LM for customizable brightness.
  • Efficacy: 110 LPW for energy-efficient lighting.
  • Power Factor: >0.90 to ensure minimal power loss.
  • Dimmable: 0~10V Dimming for versatile lighting control.
  • Color Rendering Index: CRI ≥ 80 for accurate color representation.
  • Beam Angle: 110° for wide light distribution.
  • Rated life: 50,000 hours for long-lasting performance.
  • 5-Year Warranty for peace of mind.
  • No flickering, no humming, and no RF interference for uninterrupted use.
  • No infrared rays, no ultraviolet radiation, and no thermal effect for safe use.
  • Surge Protector: 1KV, 2.5KV to protect against voltage spikes.
  • Operating Temperature: -68ºF~104ºF for reliability in varied conditions.

Specifications

  • Voltage: AC120V-277V 50/60Hz
  • Wattage: 20W/30W/40W
  • Fixture Operating Voltage: 36VDC
  • Rated Input Current: 337/253/168mA
  • Total Harmonic Distortion: ≤ 20%
  • Total Lumens: 2200LM/3300LM/4400LM
  • Size: 23 4/5"(L) x 23 4/5"(H) x 1 3/4"(D)
  • Finish: White
  • Earthquake Hooks and Suspension Hooks pre-installed for easy installation.

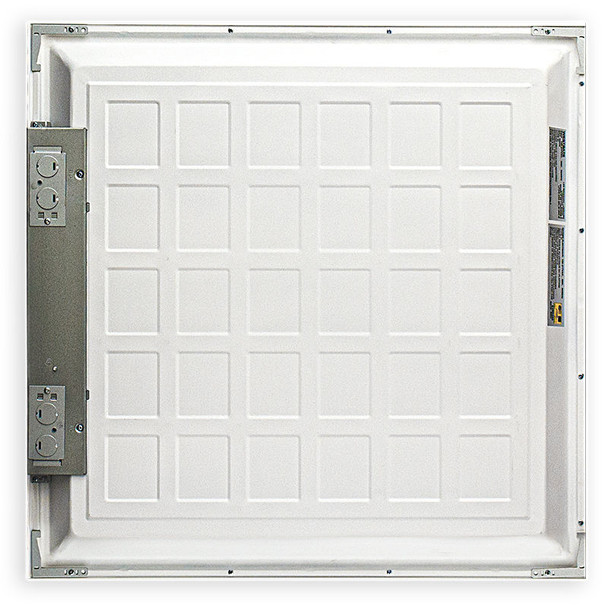

  • External driver mounted on top for convenient maintenance.

Common Uses

This panel light is perfect for commercial applications such as hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, and education facilities.
