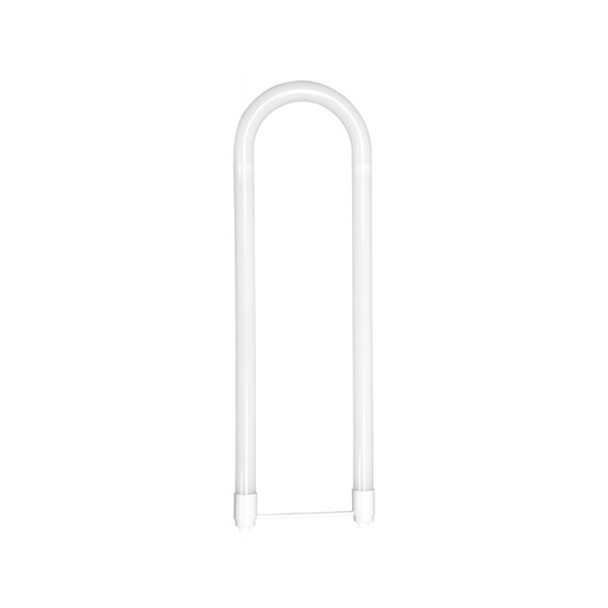

The MaxLite LED U-Bend Ballast Bypass Lamp is an energy-saving, longlasting replacement for fluorescent tubes in T8 U-bend troffers, including fully enclosed luminaires. Quick and simple to install, the lamp works in bi-pin socketed fixtures once the ballast is disconnected.

The lamp is designed with an ultra-compact light engine that distributes 1,800 lumens of high quality light using an extra wide, 320-degree beam angle. An integral driver is stored within the lamp’s cap to optimize thermal performance and eliminate dark spots, producing bright, even illumination that runs continuously from end to end of the U-shaped tube. The lamp is built with a shatterproof, polycarbonate lens that enhances safety in healthcare and food service applications.

FEATURES

• Power: 15.5W, 32W Fluorescent replacement
• Lumens: ≥1,800
• Efficacy: ≥116
• CRI: ≥80
• Input Voltage: 120-277V
• Color Temperature: 3500K, 4000K and 5000K
• Beam Angle: 240°
• Color Rendering Index (CRI): ≥85
• Non dimmable
• Base: Two pin (G13)
• THD <20%
• Power Factor: ≥0.90
• Mercury and Lead-free, UV and IR free
• Instant on
• Shatterproof polycarbonate frost lens construction
• Full illumination around bend, no dark spot
• Operating Temperature: -4°-113°F
• Suitable for use in damp locations
• Suitable for use in totally enclosed recessed fixture
• Easy and fast installation
• Five year limited warranty
• Rated Lifetime: 50,000 hours

APPLICATIONS

• Commercial offices
• Schools
• Restaurants
• Retails
• Hotels

WARRANTY

• 5-year standard warranty (further details available at www.maxlite.com/warranties)
  -Product may be eligible for a warranty extension to 10 years, for an additional fee. Contact MaxLite for details.
