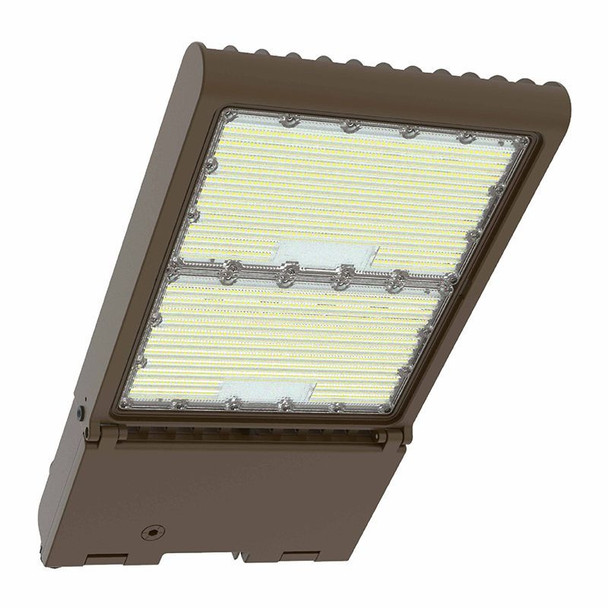

Extra Large Flood/Area Light, 150W-300W Power and CCT Adjustable

No reviews yet Write a Review
Ask Questions
Extra Large Flood/Area Light, 150W-300W
Extra Large Flood/Area Light, 150W-300W
Extra Large Flood/Area Light, 150W-300W
Extra Large Flood/Area Light, 150W-300W Size

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Extra Large Flood/Area Light, 150W-300W Power and CCT Adjustable

$325.74 - $371.74
MSRP: $366.78 - $419.78
You save $41.04 (11%)
  • SKU: WM-LFXPRO-XL-150-300W-MCTP-XX
  • MPN: LFXPRO-XL-150-300W-MCTP
  • Shipping: Free Shipping
In Stock & Ready To Ship!
Current Stock:Only left:

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Discover unparalleled lighting performance with our Extra Large Flood/Area Light, designed to meet your most demanding illumination needs. Featuring a power-selectable design that allows for 150W, 200W, 240W, or 300W configurations, this fixture emits up to 38,000 lumens for maximum brightness. Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, it ensures visibility and safety across various applications.

PRODUCT FEATURES

  • LED Flood Light with snap-on & bolt mounting options, simplifying one-person installations.
  • Multi-CCT and Multi-Power switches located on the bottom of the fixture.
  • Optic Lens Type III ensures wide and accurate light distribution.
  • Durable die-cast aluminum housing available in dark bronze, white, and black finishes.
  • Protected by a 7-year limited warranty and offers a rated life of up to 70,000 hours.

ELECTRICAL SPECIFICATIONS

  • Operating Voltage: 100-277V AC 50/60Hz
  • Power Factor: >0.9
  • Output Current: 0.25A
  • Efficacy: 125 LM/W
  • THD: <20%

MECHANICAL SPECIFICATIONS

  • Constructed from die-cast aluminum with a robust powder coat finish.
  • Features 10KV lightning surge protection.
  • Operates in temperatures ranging from -40°F to 104°F.
  • IP Rating: IP66, suitable for wet locations.
  • Effective Project Areas: Front = 0.38 sq ft, Side = 0.30 sq ft, Face = 1.05 sq ft

LIGHTING SPECIFICATIONS

  • Dimmable: 0~10V for versatile brightness control.
  • Total Lumens: 38,000 LM max.
  • Color Temperature: Adjustable between 3000K, 4000K, 5000K, and 5700K.
  • Color Rendering Index: CRI ≥70.
  • Beam Angle: 90°x120°
