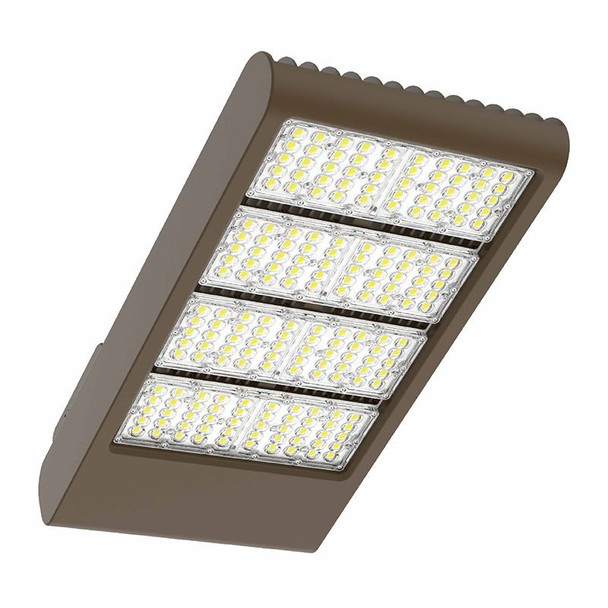

Flood/area light, 300W/ 400W/ 500W 600W power adjustable 84,000 lumens maximum, available in 5000K color temperature (CCT), suitable for wet locations, up to 70,000 hours rated life, 7 years warranty.
Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
FEATURES
- Housing: ADC12 Aluminum heat sink, outdoor powder coating
- Optical Lens: High light transmittance PC, anti-UV and flame resistant
- 70,000 Hours Rated Life
- 7-Year Warranty
- Multi-Power - The Switch is On the Bottom of the Fixture
ELECTRICAL
- Voltage: 480V
- Wattage: 300W/ 400W/500W/600W
- Power Factor: >0.9
- THD<20%
- Efficacy: 140 LPW
MECHANICAL
- With Snap-on & Bolt Mounting Options for One- Person Installations. Select a Mounting Option (Sold Separately)
- LED: LUMILEDS 2835 /5050 LED
- Housing: ADC12 Aluminum heat sink, outdoor powder coating
- 10KV Lightning Surge Protection
- Aluminum LED board: High conductive, waterproof, aging resistance, salt mist resistance, ensure the safety and long life span
- Operating Temperature: -104°F to 122°F
- Effective projected areas (EPA’s) are:
Front = 0.38 square feet
Side = 0.30 square feet
Face = 1.05 square feet - IP Rating: IP65
- Suitable for Wet Locations
LIGHTING
- Dimming: 0~10V dimmable
- Optical Lens: High light transmittance PC, anti-UV and flame resistant
- Lens: TYPE III°
- Total Lumens: 84000LM Max.
- Color Temperature: 3000K/4000K/5000K
- Color Rendering Index: ≥ 82
- Beam Angle: 120°X 90°
APPLICATIONS
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- Replace existing HID flood lights/ wall packs
RESOURCES AND DOWNLOADS
SKU | WM-LFX-XXL-300-600W-50K-480V |
---|---|
Weight | 26.00 LBS |
Light Source | LED |
Fixture Size | Other |
Driver Type | 480V |
Lumen Output | 84,000lm Max. |
Luminaire Efficacy Rating (LER) | 140lm/W |
L70 Expected Life (hours) | 70,000hrs |
Color Rendering Index (CRI) | ≥82 |
Color Temperature (CCT) | 5000K |
Total Input Watts | 300W/ 400W/500W/600W |
