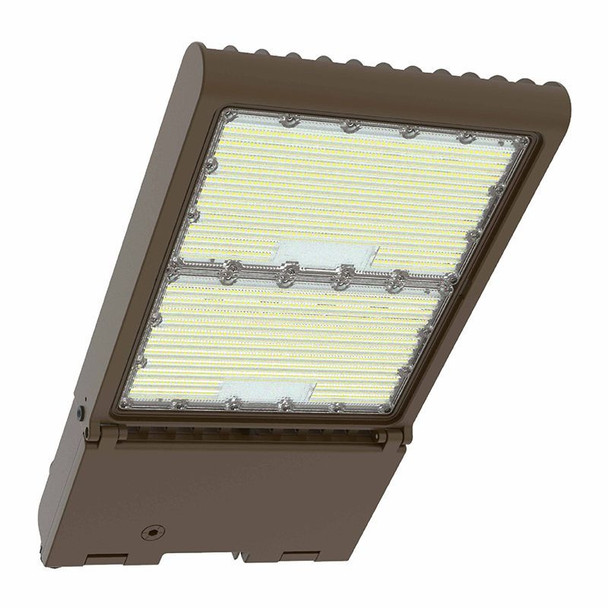

Extra large flood/area light, 150W/ 200W/ 240W/ 300W power selectable, 38,000 lumens maximum, available in 3000K/ 4000K/ 5000K/ 5700K CCT adjustable, up to 70,000 hours rated life, suitable for wet locations, 7 years limited warranty.
Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
FEATURES
- LED FLood Light
- With snap-on & bolt mounting options for one-person Installations.
- Select a mounting option (Sold separately)
- 70,000 Hours Rated Life
- 7-Year Warranty
- Optic Lens Type: III
- Multi-CCT & Multi-Power - The Switches are on the Bottom of the Fixture
ELECTRICAL
- Voltage: 100-277V AC 50/60Hz
- Wattage: 150W/ 200W/ 240W/ 300W
- Power Factor: >0.9
- Output Current: 0.25A
- Efficacy: 125 LPW
- THD: <20%
MECHANICAL
- Housing: Die-cast Aluminum Housing With Powder Coat Finish Dark Bronze, White, Black
- 10KV Lightning Surge Protection
- Operating Temperature: -40°F to 104°F
- IP Rating: IP
- Suitable for Wet Locations
- Effective project areas (EPA's) are: Front =0.38 square feet Side =0.30 square feet Face = 1.05 square feet
LIGHTING
- Dimmable: 0~10V
- Solid State Lighting technology for long life, no Maintenance needed and High-Efficiency
- Lens Type: 3.2' SJTW 18/3 AWG cable
- Total lumens: 38000LM Max
- Color temperature: 3000K/ 4000K/ 5000K/ 5700K
- Color rendering index: CRI ≥70.
- Beam Angle: 90°x120°
RESOURCES AND DOWNLOADS
Extra Large Flood/Area Light, 150W-300W Power and CCT's Spec Sheet
SKU | WM-LFXPRO-XL-150-300W-MCTP-XX |
---|---|
Weight | 24.00 LBS |
Light Source | LED |
Fixture Size | 22 5/8" x 12 5/8" x 3 1/2" |
Driver Type | 100-277VAC |
Lumen Output | 38,000lm max. |
L70 Expected Life (hours) | 70,000hrs. |
Color Temperature (CCT) | 3000K/4000K/5000K/5700K |
Total Input Watts | 150W/200W/240W/300W |
