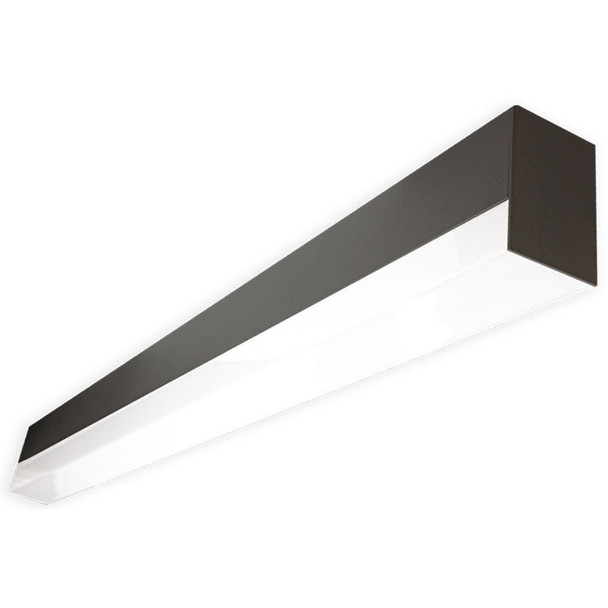

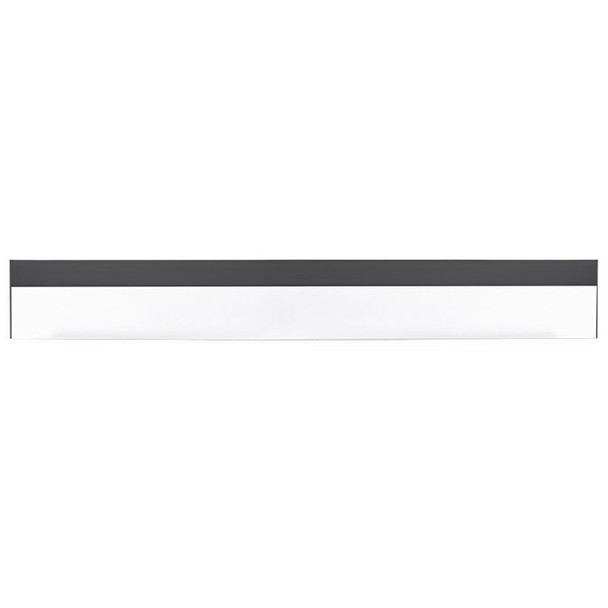

Westgate SCX-4FT-40W-MCT4-D-DL-BK LED Architectural Light
The SCX-4FT-40W-MCT4-D-DL-BK is a premium LED architectural light from Westgate's SCX series, crafted to offer superior lighting solutions for modern interiors. Ideal for high-traffic areas like offices, hotels, corridors, libraries, and meeting rooms, this fixture provides customizable lighting with selectable color temperatures and adjustable lumen outputs.
Key Features and Benefits
- Selectable color temperatures: 3000K, 3500K, 4000K, 5000K
- Adjustable lumen outputs: 4375LM, 4612LM, 4693LM, 4710LM
- High efficacy with up to 117 LPW
- Long lifespan of 50,000 hours
- CRI ≥ 80 for excellent color rendering
- Dimmable with 0-10V dimming
- Opal polycarbonate lens for direct lighting
- Aluminum housing with a sleek matte black finish
- Multiple mounting options: surface, suspended, wall, recessed
- IP54 rated for dust and water resistance
- 5-year warranty
Technical Specifications
- Voltage: 120-277VAC 50/60Hz
- Wattage: 40W
- Power Factor: >0.95
- Total Harmonic Distortion: ≤ 20%
- Beam Angle: 104.8°(H) x 100.5°(V)
- Operating Temperature: -13°F to 104°F
- Dimensions: 47.42''(L) x 2.75''(W) x 5.3''(H)
Common Uses
Ideal for offices, hotels, corridors, libraries, meeting rooms, conference halls, and any indoor applications where modern lighting solutions are required.
Resources and Downloads
| SKU | WM-SCX-4FT-40W-MCT4-D-DL-BK |
|---|---|
| Weight | 7.00 LBS |
| Total Input Watts | 40W |
| Lumen Output | 110/W |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120-277VAC |
| Color Rendering Index (CRI) | >80 |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL, DLC |
