Westgate Manufacturing

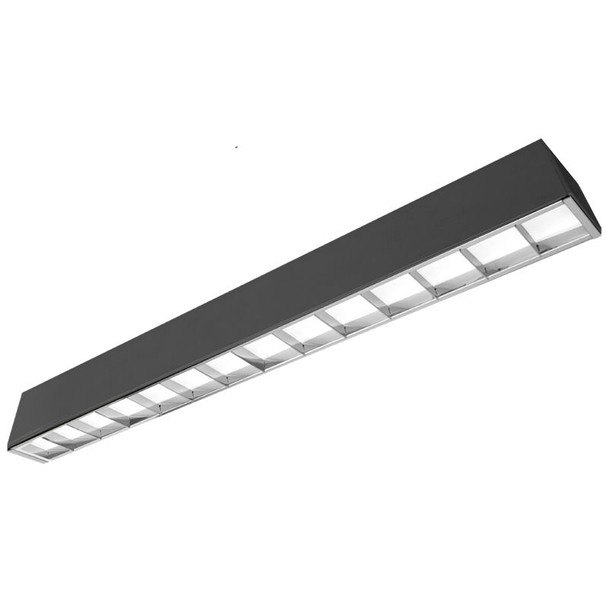

SCX Series Linear Light, 30W, Multi-CCT, 3FT, Dimmable, Black Finish

No reviews yet Write a Review
Ask Questions
SCX Series Linear Light, 30W, Multi-CCT, 3FT, Dimmable, Black Finish
SCX Series Linear Light, 30W, Multi-CCT, 3FT, Dimmable, Black Finish
SCX Series Linear Light, 30W, Multi-CCT, 3FT, Dimmable, Black Finish
SCX Series Linear Light, 30W, Multi-CCT, 3FT, Dimmable, Black Finish

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

SCX Series Linear Light, 30W, Multi-CCT, 3FT, Dimmable, Black Finish

$207.50
MSRP: $214.78
You save $7.28 (3%)
  • SKU: WM-SCX-3FT-30W-MCT4-D-LUV-BK
  • UPC: 840378308014
  • MPN: SCX-3FT-30W-MCT4-D-LUV-BK
  • Shipping: Free Shipping

Quick Overview

A versatile 3FT linear light with selectable color temperatures (3000K, 3500K, 4000K, 5000K) and adjustable lumen outputs (3329LM to 3551LM). Ideal for modern lighting solutions.

Out of stock
Current Stock:Only left:

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Versatile 3FT Linear Light with Selectable Color Temperatures and Adjustable Lumen Outputs

Introducing the WM-SCX-3FT-30W-MCT4-D-LUV-BK, an advanced and versatile 3FT linear light designed to meet modern lighting needs. This product offers selectable color temperatures ranging from 3000K to 5000K and adjustable lumen outputs between 3329LM and 3551LM, making it ideal for a wide variety of applications, from office lighting to hospitality settings.

Key Features and Benefits

  • Dimmable: 0~10V dimming capabilities for adjustable brightness.
  • Color Temperatures: Available in 3000K, 3500K, 4000K, and 5000K.
  • Total Lumens: 3329LM, 3362LM, 3523LM, and 3551LM.
  • CRI: Color rendering index of ≥ 80 for true color representation.
  • Long-Lasting: Rated to last 50,000 hours.
  • Warranty: Comes with a 5-year warranty for peace of mind.
  • Commercial-grade construction with aluminum housing and matte black finish.
  • Custom colors available upon request.

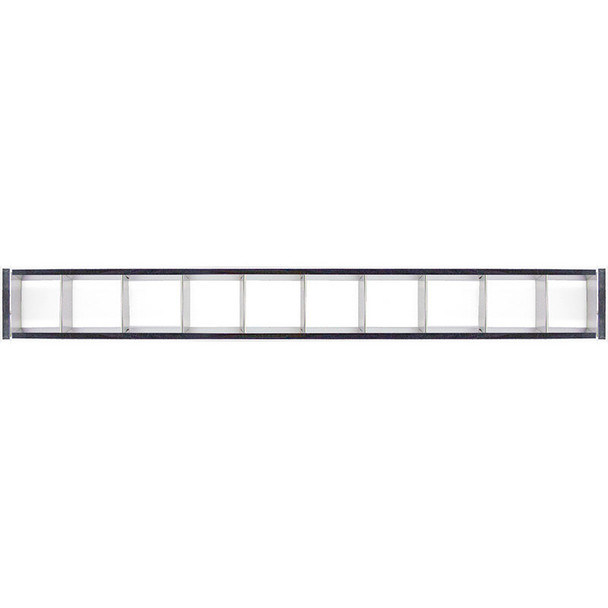

  • Includes a polished aluminum louver lens for direct lighting.

Technical Specifications

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 30W
  • Beam Angle: 104.8° (H) x 100.5° (V)
  • Power Factor: >0.95
  • Total Harmonic Distortion: ≤ 20%
  • IP Rating: IP54 for protection against dust and water.
  • Operating Temperature: -13°F to 104°F

Mounting Options

Flexible mounting options include surface, suspended, wall, and recessed installations. Comes with adjustable suspension brackets for ease of installation.

Common Uses

Perfect for offices, hotels, corridors, saloons, libraries, meeting rooms, and conference halls, this light fixture is the ideal solution for any modern indoor lighting need.

RESOURCES AND DOWNLOADS

SCX Series Linear Light Spec Sheet
