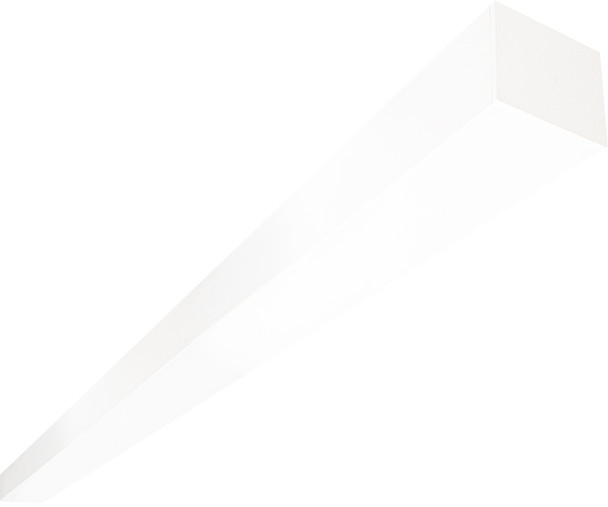

SCX4 Series 6ft. LED Seamless Linkable Linear Lighting System

Enhance your space with the SCX4 Series 6ft. LED seamless linkable linear lighting system. Consuming only 60 watts, this fixture delivers an impressive lumens range of 6,774 to 7,208 and offers adjustable color temperatures from 3000K to 5000K. Designed for flexibility and efficiency, the SCX4 Series boasts a lifespan of up to 50,000 hours and is backed by a 5-year limited warranty.

Features

• LED Superior Architectural Lights
• Seamless Linkable Linear Lighting System
• Opal Polycarbonate Lens - Direct (DOWN) Lighting
• Available recessed and wall mounting kits
• Louver version lens available
• Multi Color Temperature (Selectable with Switch Inside Fixture)

Electrical

• Voltage: 120-277VAC 50/60Hz
• Wattage: 60W
• Power Factor: >0.95
• LPW efficiency: 104/117/106/107
• Total Harmonic Distortion: ≤ 20%

Mechanical

• Low Profile Modern Design
• Aluminum Housing with Matte White Finish
• Custom Colors Available
• Lens Snaps into Housing
• Connection Types: T/L/X Joints on Both Ends
• Mounting Options: Surface, Suspended, Wall, Recessed
• IP Rating: IP54
• Operating Temperature: -13°F to 104°F
• Adjustable Suspension Brackets Provided

Lighting

• Dimmable: 0~10V Dimming
• Total Lumens: 6774LM/7275LM/7132LM/7208LM
• Color Temperatures: 3000K/3500K/4000K/5000K
• Multi-CCT Selectable with Switch Inside the Fixture
• Color Rendering Index: CRI ≥ 80
• Up Light Option Available
• 50,000 Hours Rated Life
• 5-Year Warranty
• Beam Angle: 104.8°(H) x 100.5°(V)

Applications

• Ideal for offices, hotels, corridors, salons, libraries, meeting rooms, conference halls, and modern lighting solutions
• Suitable for any indoor applications
