Name: STL4 Series Outdoor Lighting, 30W/50W/80W/100W, 4000K, 480V
Brand: Westgate Manufacturing
SKU: WM-STL4-30-100W-40K-480V
Price: 422.7 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

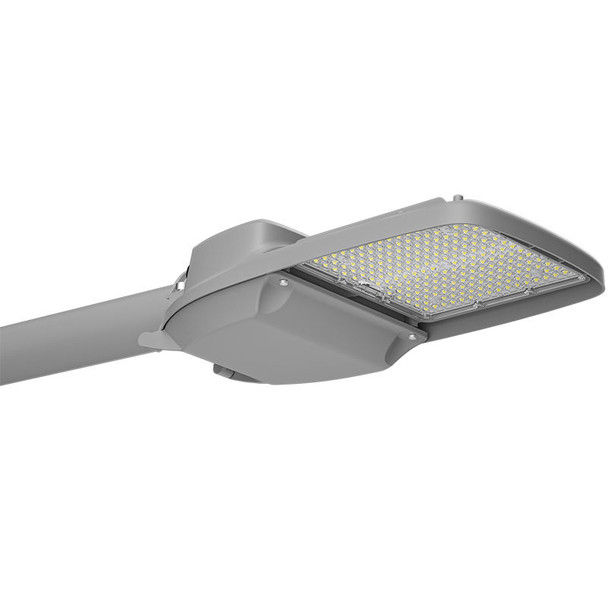

STL4 Series Outdoor Lighting Fixture - Versatile and Efficient

This outdoor lighting fixture from the STL4 Series by Westgate Manufacturing is engineered for reliability and performance. With selectable wattage options and a cool 4000K color temperature, it is an ideal solution for a range of outdoor environment applications.

Key Features and Benefits

Selectable Wattage: Multi-Power switch located on the back of the fixture allows for easy customization.
Superior Optics: Optical TYPE III Lens with high light transmittance, anti-UV, and flame-resistant PC.
Dimming Capability: 0-10V dimming capability for better control over lighting intensity.
Enhanced Thermal Management: Driver located in isolated compartment for improved thermal handling.
High Lumens: Total lumens output of 14000LM Max.
Color Temperature: A consistent 4000K color temperature for a cool and clear light.
Color Rendering Index: CRI ≥ 70 for accurate color representation.
Longevity: Remarkable rated life of 70,000 hours.
Durability: Die-cast aluminum construction with a light grey powder coat finish.
Advanced Features: Includes a NEMA twist-lock Photocell Socket with shorting cap.
Protection: 10KV lightning surge protection and IP65 rating suitable for wet locations.
Warranty: Backed by a 7-year warranty.

Technical Specifications

Voltage: 480V; 60Hz AC
Power Factor: >0.95
Wattage: 30W/50W/80W/100W
Efficacy: 140 LM/W
Maximum Ambient Temperature: 104°F
Dimensions: 9 1/2" (H) x 19" (W) x 4 3/4" (D)

Common Uses

This fixture is perfect for general site lighting, street lighting, roadways, alleys, loading docks, doorways, pathways, and parking areas.

RESOURCES AND DOWNLOADS

STL4 Series Outdoor Lighting Spec Sheet

Westgate Resources and Downloads

Spec Sheet

Details

Beam Angle:	140° x 80°
CRI:	70
Color Temperature:	4000K
Compliance & Warranty:	7 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	145LM/W
Finish / Color:	Gray
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	4.72
Item Length (Inch):	18.98
Item Weight (LBS):	3.88
Item Width (Inch):	9.51
L70 Expected Life (hours):	70,000hr\|70000
Lumen Output:	14000\|4350\|7250\|11600\|14500
Operating Temperature:	-40°F to 104°F
Power Factor:	0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable Lumen Output
THD:	<20%
Voltage:	480V
Wattage:	30W\|50W\|80W\|100W
