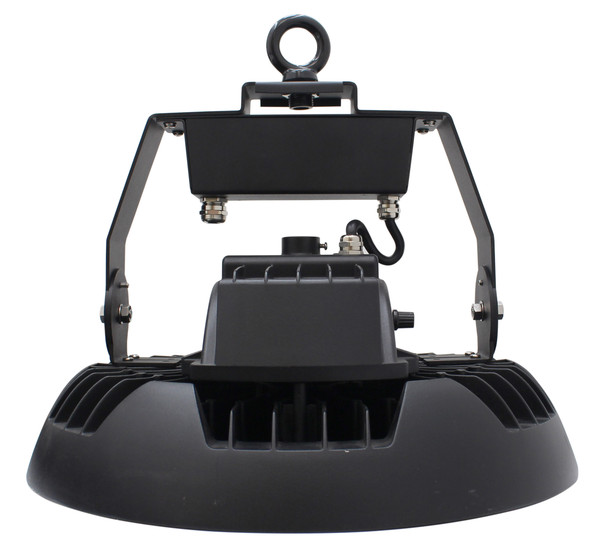

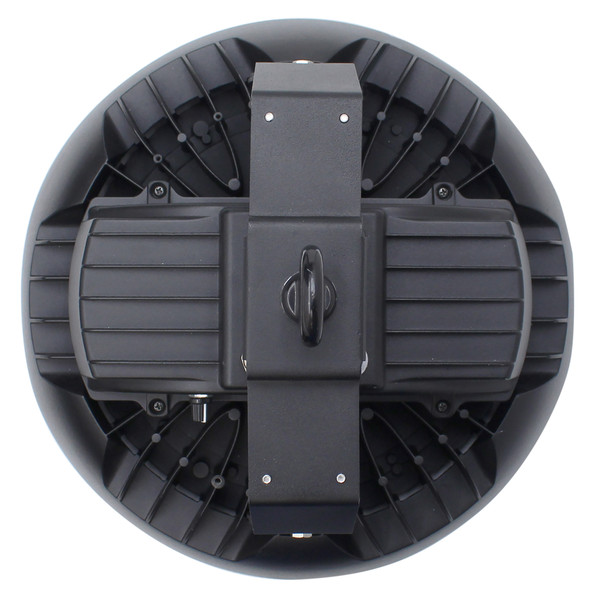

UFO Highbay, 50W-150W Power and CCT Adjustable

High Efficiency UFO Highbay Light for Industrial Use

Introducing the WM-UHX-150W-MCTP-480V UFO Highbay Light – your ultimate lighting solution for industrial and commercial applications. This versatile highbay light offers adjustable power settings at 50W, 80W, 100W, and 150W, delivering an impressive 125 lumens per watt. You can easily customize the color temperature to 3000K, 4000K, 5000K, or 5700K to suit various environments.

Designed with durability in mind, the UHX comes with a waterproof IP65 rating, making it suitable for wet locations. It boasts a robust ADC12 aluminum shell that ensures reliable heat dissipation and extends its life to up to 50,000 hours. This product is backed by a comprehensive 5-year warranty for added peace of mind.

FEATURES

• IP65 waterproof design suitable for wet locations
• ADC12 Aluminum Heat Sink with outdoor powder coating finish
• PC Material Optical Lens with high light transmittance, UV resistance, and fire-resistant properties
• Multi-color temperature and power adjustable via a switch on the driver housing

ELECTRICAL SPECIFICATIONS

• Input Wattage: 50W/80W/100W/150W
• Input Voltage: 480V 50/60Hz
• Power Factor: >0.9
• Total Harmonic Distortion (THD): <20%
• Efficacy: 125 LPW

MECHANICAL SPECIFICATIONS

• ADC12 Aluminum Heat Sink with outdoor powder coating finish
• PC Material Optical Lens, anti-UV and fire-resistant
• Lumileds 2835 LEDs
• High conductive LED PCB board with waterproof, aging, and salt mist resistance
• Operating temperature range: -40°F to 122°F
• IP65 rating for wet locations
• 5-year warranty

LIGHTING SPECIFICATIONS

• 0~10V dimming
• Total Lumens: 6250/10000/12500/18750 LM
• Multi-color temperature and power selectable
• Color Temperatures: 3000K/4000K/5000K/5700K
• Color Rendering Index (CRI): >80
• Beam Angle: 90°
• Lifespan: 50,000 hours

APPLICATIONS

• Suited for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings
