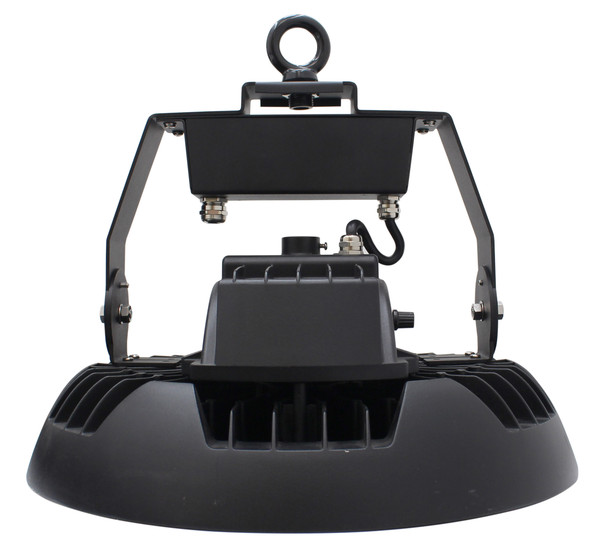

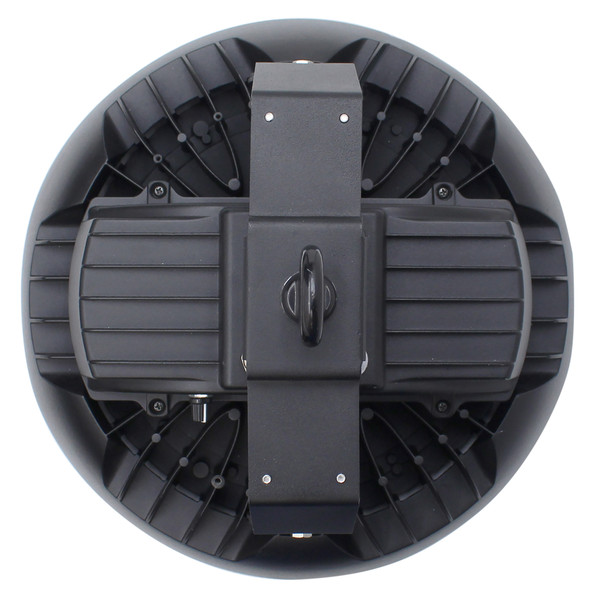

UFO highbay, 50W/ 80W/ 100W 150W power adjustable, 125 lumens, available in 3000K/ 4000K/ 5000K/ 5700K CCT adjustable, wateproof design, up to 50,000 hours rated life, suitable for wet locations, 5 years warranty.
In a aluminum shell designed for heat dissipation, UHX is IP65 water resistant rated and ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses and storage buildings.
FEATURES
- Waterproof design, suitable for wet locations
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
- Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
- Multi Color Temperature & Multi Power (Selectable Switch Located On The Driver Housing)
ELECTRICAL
- Input Wattage: 50W/80W/100W/ 50W
- Input Voltage: 480V 50/60Hz
- Power Factor: >0.9
- THD: <20%
- Efficacy: 125 LPW
MECHANICAL
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
- Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
- LED: LUMILEDS 2835
- LED PCB Board: High Conductive, Waterproof, Aging Resistance, salt mist Resistance,
- Ensure the Safety and Long Lifespan
- Operating temperature: -40°F to 122°F
- IP rating: IP65, Wet Locations
- 5-Year Warranty
LIGHTING
- Dimming: 0~10V
- Total Lumens: 6250/10000/ 2500/18750 LM
- Multi Color Temperature & Multi Power (Selectable Switch Located On The Driver Housing)
- Color Temperatures: 3000K/ 4000K/ 5000K/5700K
- Color Rendering index: > 80
- Beam Angle: 90°
- Lifespan: 50,000 Hrs
APPLICATIONS
- Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.
| SKU | WM-UHX-150W-MCTP-480V |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 480V 50/60Hz |
| Lumen Output | 125lm |
| Luminaire Efficacy Rating (LER) | 125lm/W |
| L70 Expected Life (hours) | 50,000hrs |
| Color Rendering Index (CRI) | >80 |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 50W/80W/100W/ 50W |
