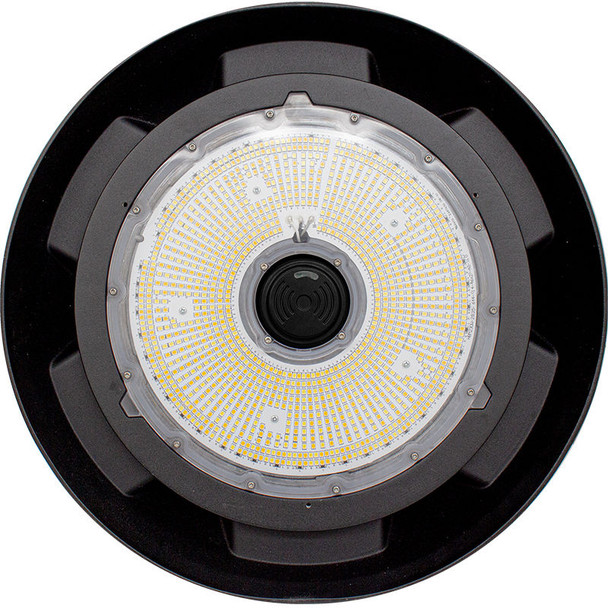

UHX Series 230W Outdoor Lighting Solution
The UHX Series 230W is a cutting-edge, versatile outdoor lighting solution. This model offers selectable wattage and a powerful 5000K color temperature, engineered to deliver exceptional performance and longevity. It is an excellent choice for various applications, including general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings.
Key Features and Benefits
- Waterproof design suitable for wet locations, ensuring durability and performance even in harsh environments
- High-quality ADC12 Aluminum Heat Sink with outdoor powder coating finish for optimal heat dissipation
- Sensor-ready with a pre-installed twist-lock Zhaga socket, enabling easy integration of motion sensors
- Selectable wattage: 100W, 150W, 200W, and 230W for customizable power usage
- High efficacy, up to 155 LPW, ensuring bright and efficient illumination
- Total lumen output of up to 32,200LM, providing superior brightness
- Color Rendering Index (CRI) of over 80 for true and vibrant color representation
- Broad beam angle of 110° for wide-area coverage
- IP65 rating for excellent water and dust resistance
- Long lifespan of 50,000 hours, backed by a 5-year warranty
Technical Specifications
- Input Wattage: 100W, 150W, 200W, 230W
- Input Voltage: 120-277V AC 50/60Hz
- Power Factor: Greater than 0.9
- Total Harmonic Distortion (THD): Less than 20%
- Efficacy: 155/150/145/140 LPW
- LED: LUMILEDS 2835
- Operating Temperature: -40°F to 122°F
- Dimensions: 8 1/2” (H) x 14 3/5” (D)
- Dimming Capability: 0~10V
Applications
Perfect for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings.
RESOURCES AND DOWNLOADS
SKU | WM-UHX-230W-MP-50K-SR |
---|---|
Weight | 13.00 LBS |
Total Input Watts | 100W |
Total Input Watts | 150W |
Total Input Watts | 200W |
Total Input Watts | 230W |
Lumen Output | 140/W |
Color Temperature (CCT) | 5000K |
Voltage | 120-277V |
Color Rendering Index (CRI) | >80 |
L70 Expected Life (hours) | 50000 |
Listings and Ratings | UL |
