Name: UHX Series, 300W, Multi Power, 5000K, Sensor Ready
Brand: Westgate Manufacturing
SKU: WM-UHX-300W-MP-50K-SR
Price: 314.15 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

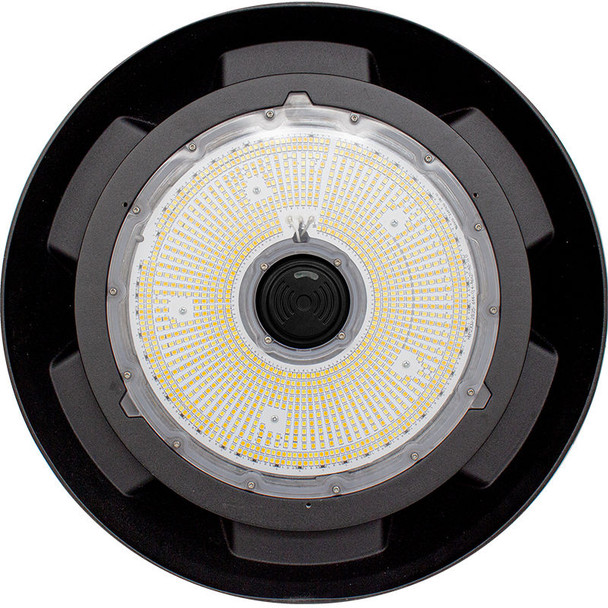

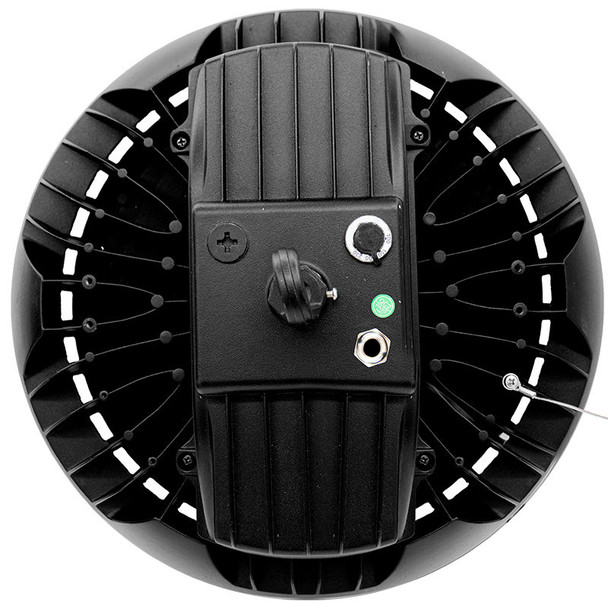

Westgate Manufacturing UHX Series 300W Fixture

The UHX Series 300W fixture from Westgate Manufacturing stands as a leading-edge lighting solution, engineered for superior versatility and high performance. Perfect for use in challenging environments, this fixture delivers robust and reliable illumination.

Key Features and Benefits

Waterproof design suitable for wet locations, ensuring durability across varied weather conditions.
Constructed with ADC12 aluminum heat sink and finished with outdoor powder coating for enhanced longevity.
Offers selectable wattage options (150W, 200W, 240W, 300W) to cater to diverse lighting needs.
Supports input voltage of 120-277V AC 50/60Hz, adaptable to common electrical systems.
High efficacy rated at 140-155 LPW, optimizing energy use and performance.
Equipped with a durable PC optical lens providing high light transmittance, anti-UV, and fire-resistant properties.
Remarkable lifespan of 50,000 hours for long-term reliability.
IP65 rating confirms suitability for wet locations.
Comes with a 5-year warranty for peace of mind.
Supports 0-10V dimming capability for adaptable lighting levels.
Features a multi-power selectable switch located on the driver housing.
Utilizes Lumileds 2835 LEDs for superior brightness and efficiency.
Available in color temperature options of 4000K and 5000K to meet specific lighting preferences.
High color rendering index (CRI) over 80, ensuring vibrant and accurate color representation.
Wide beam angle of 110° for comprehensive light distribution.

Technical Specifications

Input Wattage: 150W/200W/240W/300W
Input Voltage: 120-277V AC 50/60Hz
Power Factor: >0.9
Total Harmonic Distortion (THD): <20%
Efficacy: 140-155 LPW
Operating Temperature: -40°F to 122°F
IP Rating: IP65
Total Lumens: 23,250/30,000/33,350/42,000 LM
Color Temperatures: 4000K/5000K
Color Rendering Index: >80
Beam Angle: 110°
Lifespan: 50,000 hours

Common Uses

Ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings.

RESOURCES AND DOWNLOADS

UHX Series Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B4 U0 G3
Beam Angle:	90°
CRI:	80
Color Temperature:	5000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	140LM/W
Finish / Color:	Black
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	8.964549
Item Length (Inch):	16.204692
Item Weight (LBS):	11.684
Item Width (Inch):	16.204692
L70 Expected Life (hours):	50000hr
LED Type:	Lumileds 2835
Lens Material:	Optical lens
Lumen Output:	23250\|30000\|33350\|42000\|21000\|28000\|32200
Operating Temperature:	-40℉~+113℉
Power Factor:	>0. 9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	150W\|200W\|230W\|300W
