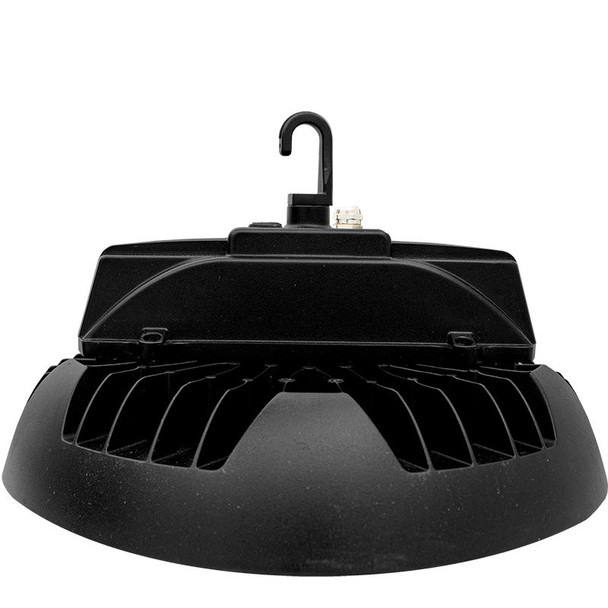

UHX Series, 230W, Multi Power, 4000K, Sensor Ready

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

UHX Series, 230W, Multi Power, 4000K, Sensor Ready

$211.30
MSRP: $234.78
You save $ 23.48 (10%)
  • SKU: WM-UHX-230W-MP-40K-SR
  • UPC: 845060042689
  • MPN: UHX-230W-MP-40K-SR

Quick Overview

UHX Series, 230W, Multi Power, 4000K, Sensor Ready (wattage: 100W/150W/200W/230W; lumens: 15500/22500/29000/32200; efficacy: 140LM/W; CCT: 4000K; voltage: 120-277V)

UL Listed
WARRANTY 5 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 299
Free shipping on this item
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

230W LED Light - Selectable Wattage and Brightness

Introducing the versatile 230W LED light with selectable wattage and adjustable lumen outputs specifically designed to meet your diverse lighting needs. This high-performance light features a 4000K color temperature and produces a remarkable lumen range of 15500 to 32200LM, ensuring bright and efficient illumination suitable for wet locations.

Key Features and Benefits

  • IP65 Waterproof design for reliable performance in wet environments
  • Durable ADC12 aluminum heat sink with an outdoor powder-coated finish for enhanced longevity
  • Comes sensor-ready with a pre-installed twist-lock Zhaga socket for easy integration
  • High luminous efficacy ranging from 140 to 155 lumens per watt
  • Selectable input wattage options: 100W, 150W, 200W, and 230W
  • Operates on a wide input voltage range of 120-277V AC (50/60Hz)
  • High power factor (>0.9) and low Total Harmonic Distortion (THD) of less than 20%
  • Advanced PC optical lens material with high light transmittance, anti-UV properties, and fire resistance
  • 0-10V dimming capability for flexible lighting control
  • Designed to operate in extreme temperatures from -40°F to 122°F
  • Comes with a 5-year warranty for peace of mind

Technical Specifications

  • Lumen outputs: 15500, 22500, 29000, and 32200LM
  • Color temperatures available: 4000K and 5000K
  • Color Rendering Index (CRI): greater than 80
  • Wide 110° beam angle to cover extensive areas
  • Impressive lifespan of 50,000 hours

Common Applications

This LED light is ideal for various applications including general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings.
