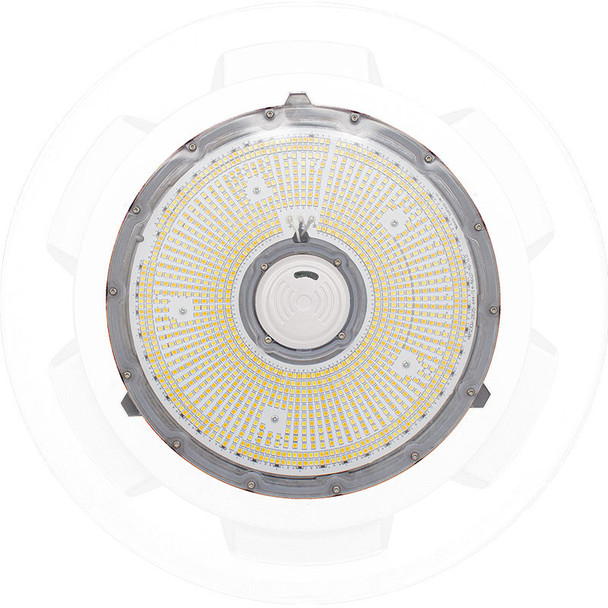

UHX Series, 230W, Multi Color Temperature & Multi Power, White, Sensor Ready

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

UHX Series, 230W, Multi Color Temperature & Multi Power, White, Sensor Ready

$187.74
MSRP: $211.78
You save $ 24.04 (11%)
  • SKU: WM-UHX-230W-MCTP-WH-SR
  • UPC: 845060042856
  • MPN: UHX-230W-MCTP-WH-SR

Quick Overview

UHX Series, 230W, Multi Color Temperature & Multi Power, White, Sensor Ready (wattage: 100W/150W/200W/230W; lumens: 13000/19500/26000/29900; efficacy: 130LM/W; CCT: 30K/40K/50K/57K; voltage: 120-277V)

WARRANTY 5 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 47
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Introducing the UHX Series 230W Industrial Light

Discover unparalleled performance with the UHX Series 230W industrial light, engineered for versatility and efficiency in demanding applications. This robust lighting solution offers selectable color temperatures and adjustable power settings, ensuring it meets the unique requirements of various environments with exceptional efficacy and a long lifespan.

Key Features and Benefits

  • Four selectable color temperatures: 3000K, 4000K, 5000K, and 5700K
  • Adjustable lumen outputs: 13000, 19500, 26000, and 29900 LM
  • High efficacy of 130 lumens per watt (LPW)
  • IP65 rated for protection against water and dust
  • Constructed with a durable ADC12 aluminum heat sink featuring an outdoor powder coating finish
  • Extended lifespan of up to 50,000 hours
  • Equipped with a high light transmittance PC optical lens
  • Power factor greater than 0.9 and Total Harmonic Distortion (THD) less than 20%
  • 0-10V dimming capability for optimal lighting control
  • Sensor Ready with a pre-installed Twist-Lock Zhaga Socket

Specifications

  • Input Wattage Options: 100W, 150W, 200W, 230W
  • Input Voltage: 120-277VAC, 50/60Hz
  • Operating Temperature Range: -40°F to 122°F
  • Color Rendering Index (CRI): Greater than 80
  • Beam Angle: 110°
  • Total Lumens: 13000, 19500, 26000, 29900 LM

Applications

Perfect for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings, delivering reliable performance in various settings.

RESOURCES AND DOWNLOADS

UHX Series Spec Sheet

Westgate Resources and Downloads
