Name: 12in Adj. Head Under Cab. 3CCT + 9 RGB Modes, PUSH-BUTTON Control, Cords Incl., White
Brand: Westgate Manufacturing
SKU: WM-UCA-RGBW-PB-12-WH
Price: 75.55 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

Versatile Lighting Solutions for Any Setting

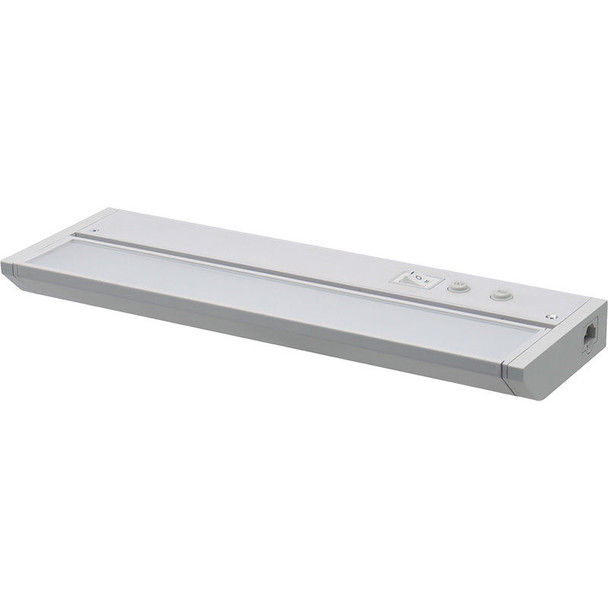

Illuminate your space with the Westgate Manufacturing UCA-RGBW-PB-12-WH Under Cabinet Light. This 12-inch fixture, designed with 9 dynamic RGBW modes and selectable 3CCT (3000K, 4000K, 5000K) color temperatures, provides flexible lighting solutions tailored to suit any environment. It is ideal for enhancing the ambiance and functionality in kitchens, offices, and other areas.

Key Features and Benefits

RGBW (9 Modes) & 3CCT Under Cabinet Light
Push-Button Color Control for Easy Adjustments
Selectable Color Temperatures: 3000K, 4000K, 5000K
Adjustable Lumen Outputs for Custom Light Levels
Durable Extruded Aluminum Housing with Glass Lens
Dimmable: Triac Dimmable Technology
High Color Rendering Index: >90
Wide Beam Angle: 110°
Long Lifespan: 35,000 Hours
Comprehensive 7-Year Warranty

Technical Specifications

Voltage: 120V/60Hz
Wattage: 5W
Total Lumens: 275LM
Efficacy: 55 LM/W
Operating Temperature: -4°F to 114°F
IP Rating: IP20
Dimensions: 3.86"(H) x 12"(W) x 1"(D)

Common Uses

This under cabinet light is perfect for adding ambient lighting or enhancing task visibility, particularly in kitchens, offices, hospitality, and residential environments.

RESOURCES AND DOWNLOADS

Under Cabinet Light Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	110°
CRI:	90
Color Temperature:	3000K\|4000K\|5000K\|RGB
Compliance & Warranty:	ETL Listed\|3 Year Warranty
Country of Origin:	INDONESIA
Dimming Type:	Phase
Finish / Color:	White
Housing Material:	Aluminum
IP Rating:	IP20
Item Height (Inch):	1
Item Length (Inch):	12
Item Weight (LBS):	1.67
Item Width (Inch):	3.86
L70 Expected Life (hours):	50,000hr
LED Type:	CCT LED: RUNLITE + RGB: TONGYIFANG ELECTRIC
Lens Material:	Glass lens
Lumen Output:	275
Operating Temperature:	-4°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
THD:	<20%
Voltage:	120V
Wattage:	5W
