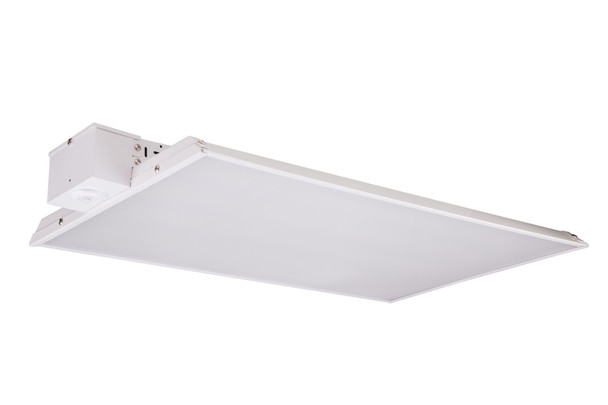

200W versatile linear high bay with selectable color temperature (4000K/5000K) and adjustable lumen outputs (30,000/27,000/24,000/21,000 lm).
Key Features and Benefits
- Power & Color Select Technology for simplified SKU management and field customization
- 4 Power settings
- FieldCCeT – 2 CCT settings (4000/5000K)
- Full spectrum input voltage coverage: 120-347V
- Wide range of lumen packages (7,500 – 66,000 lumens)
- Diffused polycarbonate lens for reduced glare (beam angle 95 degrees)
- Heavy gauge steel housing and impact-resistant lens
- CRI >80, Efficacy up to 150 LPW
- Lumen Maintenance 70% (L70) at > 100,000Hrs
- THD <20%, Power Factor >0.9
- Surge Protection: 6kV included
- All products are DesignLights Consortium® (DLC) Premium listed
Specifications
- Wattage: 200W
- Color Temperature: 4000K/5000K
- Lumen Output: 30,000/27,000/24,000/21,000 lm
- Voltage: 120-347V
- CRI: >80
- Efficacy: up to 150 LPW
- Lumen Maintenance (L70): > 100,000Hrs
- THD: <20%
- Power Factor: >0.9
- Surge Protection: 6kV
Common Uses
Warehouses, Distribution Centers, Grocery Stores, Gymnasiums, Data Centers, Manufacturing Plants, Cold Storage, Big Box Retail, Indoor Recreational Facilities, Vehicle Maintenance Facilities.
RESOURCES AND DOWNLOADS
| SKU | E-LHS1-PS200-8FCCT-HDIM |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 30,000/27,000/24,000/21,000 lm |
| Total Input Watts | 200W |
| Voltage | 120-347V |
| Color Temperature (CCT) | 4000K/5000K |
| Color Rendering Index (CRI) | >80 |
