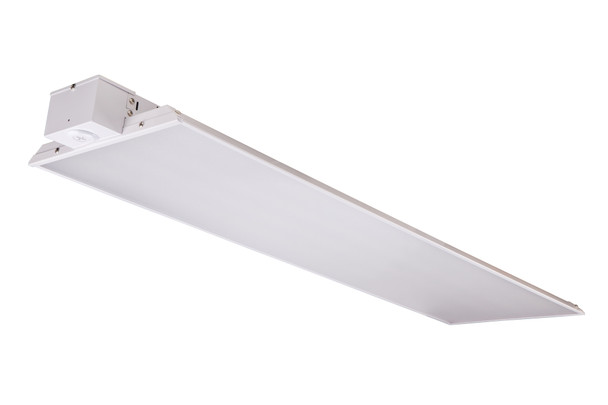

VERSATILE LINEAR HIGH BAY, 240W, Field Color Selectable (4000K/5000K), 120-347V, 0-10V Dimming

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VERSATILE LINEAR HIGH BAY, 240W, Field Color Selectable (4000K/5000K), 120-347V, 0-10V Dimming

$169.25
  • SKU: E-LHS1-PS240-8FCCT-HDIM
  • MPN: LHS1-PS240-8FCCT-HDIM

Quick Overview

VERSATILE LINEAR HIGH BAY, 240W with selectable color temperature (4000K/5000K) and adjustable lumen outputs (36,000/33,000/30,000/27,000 lm).

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The VERSATILE LINEAR HIGH BAY, 240W offers a blend of traditional design and modern technology, providing excellent illumination for various high bay applications with selectable color temperature and adjustable lumen outputs.

Key Features and Benefits

  • Power & Color Select Technology for simplified SKU management and field customization.
  • Selectable power settings: 240/220/200/180W.
  • Selectable CCT settings: 4000K and 5000K.
  • Full spectrum input voltage: 120-347V.
  • Wide range of lumen packages (36,000/33,000/30,000/27,000 lm).
  • Diffused polycarbonate lens for reduced glare.
  • Heavy gauge steel housing and impact resistant lens.
  • Technical performance: CRI >80, efficacy up to 150 LPW, L70 at >100,000 hours, THD <20%, Power Factor >0.9.
  • Surge protection: 6kV included.
  • DesignLights Consortium® (DLC) Premium listed.

Specifications

  • Wattage: 240W (adjustable to 220/200/180W).
  • Lumen Output: 36,000/33,000/30,000/27,000 lm.
  • Color Temperature: 4000K/5000K (Field Color Selectable).
  • Input Voltage: 120-347V.
  • CRI: >80.

Common Uses

Ideal for warehouses, distribution centers, grocery stores, gymnasiums, data centers, manufacturing plants, cold storage, big box retail, indoor recreational facilities, and vehicle maintenance facilities.
