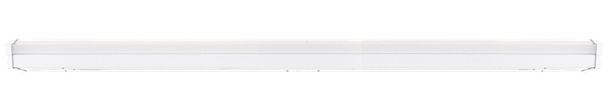

Enhance your lighting setup with the WA series LED architectural wrap-around light. This energy-efficient fixture operates at 30 watts and outputs between 3,166 and 3,340 lumens, making it perfect for a variety of settings. With an adjustable color temperature of 3000K, 4000K, and 5000K, this light promises versatility and superior illumination. Rated for up to 50,000 hours of life and backed by a 5-year limited warranty, it’s designed to be a long-lasting addition to any space, including damp locations.
FEATURES
- High-performance LED Architectural Wrap-Around Lights
- Sleek White Finish
- Powered by High-lumen LEDs
- Comes with a 5-Year Warranty
- Rated for 50,000 Hours of use
- Durable Opal Polycarbonate Lens
- Multicolor Temperature Selection (via Switch Inside Fixture)
ELECTRICAL SPECIFICATIONS
- Voltage Compatibility: 120-277VAC 50/60Hz
- Wattage: 30W
- High Power Factor: >0.95
- High Efficacy: 98/98/105 LPW
MECHANICAL DETAILS
- Sturdy White Finish
- Constructed from Die-formed Heavy Gauge Cold Rolled Steel with Powder-Coating
- 24-Gauge Steel Thickness
- Optional Driver Available
- Easy Ceiling-Mounted Installation
- Optional Battery Backup for 30W Units
- Operating Temperature Range: -22°F to 107°F
- Suitable for Damp Locations
LIGHT PERFORMANCE
- 0-10V Dimmable
- Lumen Output: 3,166LM/3,217LM/3,340LM
- Adjustable Color Temperatures: 3000K, 4000K, 5000K
- Multicolor Temperature Selection (via Switch Inside Fixture)
- High Color Rendering Index: CRI ≥ 82
- IP Rating: IP40
APPLICATIONS
- Ideal for corridors, stairwells, public rooms, schools, hospitals, and utility areas
RESOURCES AND DOWNLOADS
Download the WA Series 30 Watt LED Architectural Wrap-Around Light Spec Sheet
SKU | WM-WA-4FT-30W-MCT-D |
---|---|
Weight | 8.00 LBS |
Light Source | LED |
Fixture Size | Other |
Color Rendering Index (CRI) | >82 |
Driver Type | 120~277V |
Lumen Output | 3,166lm-3,340lm |
L70 Expected Life (hours) | 50,000 |
Color Temperature (CCT) | MCT |
Total Input Watts | 30W |
Lumen Output | 3200 |
Color Temperature (CCT) | 3500K |
Color Temperature (CCT) | 4000K |
Color Temperature (CCT) | 5000K |
Voltage | 120-277V |
