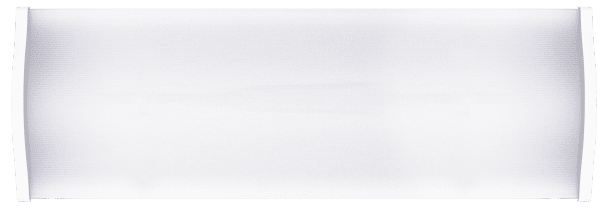

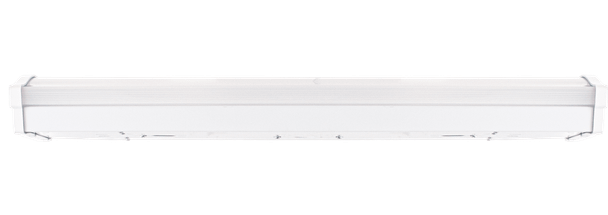

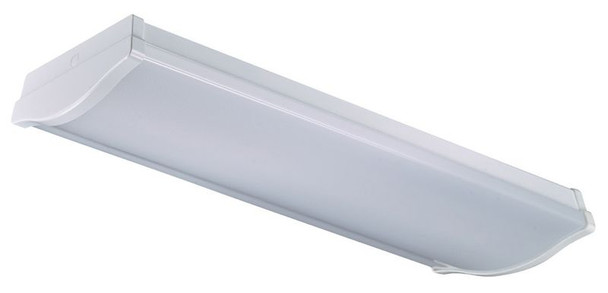

The LED Wrap-Around Light is a cost-effective, energy-efficient utility lighting fixture for surface-mount applications such as corridors, stairwells, public rooms, schools, hospitals, and utility areas.
ELECTRICAL
- Voltage: 120-277VAC 50/60Hz
- Wattage: 25W
- Power factor: >0.9
- Efficacy: 100LM/W
HOUSING
- Cold Rolled Steel with (White) powder coated finish
- Opal PC lens
- Operating temperature: -22°F~107.6°F
- Lifespan: 50000 Hrs.
- IP rating: Dry Locations Only
CERTIFICATIONS
ULDIMENSIONS
23-1/4” (L) x 8-3/16” (W) x 2-3/4” (H)LIGHTING
- Dimming: 0~10V dimmable
- Total lumens: 2500LM
- Color temperature: 3000K / 5000K
- Color rendering index: >82
WARRANTY
5 yearsRESOURCES AND DOWNLOADS
| SKU | WM-WA-2FT-25W |
|---|---|
| Weight | 16.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | >82 |
| Driver Type | 120-277VAC |
| Lumen Output | 2500LM |
| Luminaire Efficacy Rating (LER) | 100LM/W |
| L70 Expected Life (hours) | 50000 Hrs |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 25 |
