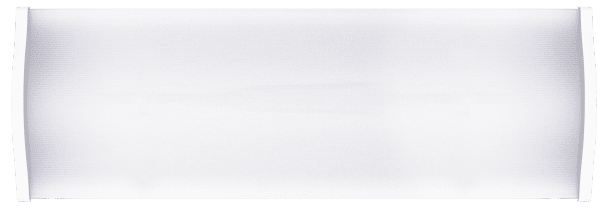

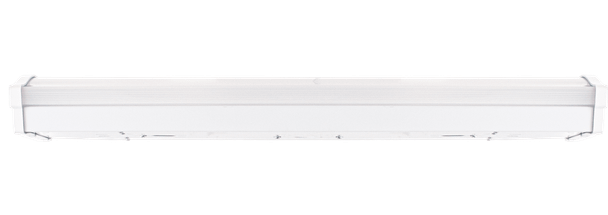

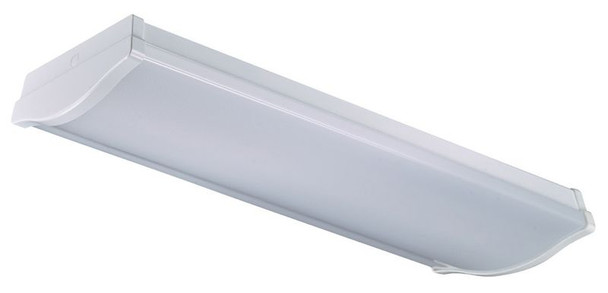

Energy-Efficient LED Wrap-Around Light Fixture

The LED Wrap-Around Light is the ultimate solution for any commercial or residential space seeking to reduce energy costs while enhancing illumination. Perfect for surface-mount applications like corridors, stairwells, public rooms, schools, hospitals, and utility areas, this 25W light fixture is both cost-effective and energy-efficient.

ELECTRICAL SPECIFICATIONS

Voltage: 120-277VAC 50/60Hz
Wattage: 25W
Power Factor: >0.9
Efficacy: 100LM/W

HOUSING AND DESIGN

Material: Cold Rolled Steel with a white powder-coated finish
Lens: Opal PC lens
Operating Temperature: -22°F~107.6°F
Lifespan: 50,000 hours
IP Rating: Suitable for dry locations only

CERTIFICATIONS

This product is UL certified, ensuring high safety standards.

DIMENSIONS

Measurements: 23-1/4” (L) x 8-3/16” (W) x 2-3/4” (H)

LIGHTING PERFORMANCE

Dimming: 0-10V dimmable
Total Lumens: 2500LM
Color Temperature: Available in 3000K and 5000K
Color Rendering Index (CRI): >82

WARRANTY

Enjoy a 5-year warranty, ensuring peace of mind and long-term reliability.

RESOURCES AND DOWNLOADS

2ft. LED Wrap-Around Light Spec Sheet

Westgate Resources and Downloads

Catalog Page

Details

CRI:	80
Color Temperature:	3500K\|5000K\|3000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	120-277V
Finish / Color:	White
Fixture Size:	Other
Housing Material:	Steel
Item Height (Inch):	2.7559055118110236
Item Length (Inch):	24.80314960629921
Item Weight (LBS):	3.7478584571429185
Item Width (Inch):	8.188976377952756
L70 Expected Life (hours):	50,000hr
LED Type:	High-lumen LEDs
Lens Material:	Opal Polycarbonate
Light Source:	LED
Lumen Output:	2750\|2500
Luminaire Efficacy Rating (LER):	100lm/W
Operating Temperature:	-22°F~107°F
Power Factor:	0.95
Ships From:	CA
Special Features:	Selectable CCT
Voltage:	120-277V
Wattage:	25W
