Description

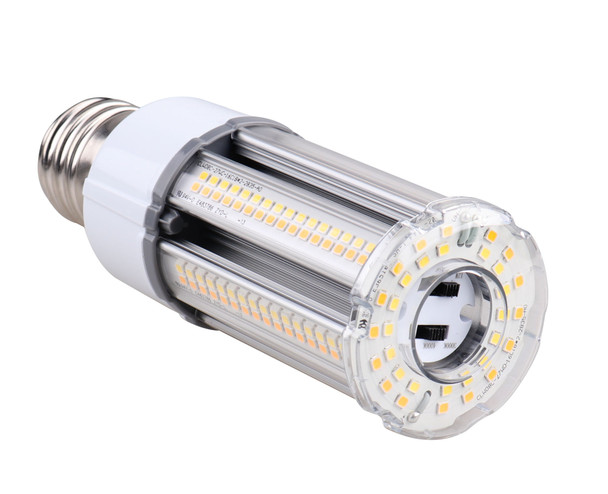

The Westgate CL-XHL Series LED Corn Lamp is a versatile retrofit solution designed for maximum efficiency and flexibility. With selectable wattage (18W, 27W, or 36W) and color temperature (3000K, 4000K, or 5000K), this lamp adapts to a variety of lighting needs. Its high efficacy and robust construction make it a standout in Westgate's lineup, perfect for demanding commercial and industrial environments.

Key Features and Benefits

Selectable wattage and color temperature for ultimate flexibility
High lumen output up to 5220lm for bright, uniform illumination
Impressive efficacy at 145 LPW for energy savings
Long 50,000-hour rated life reduces maintenance costs
Durable PC and aluminum housing with E39 mogul base
Suitable for enclosed fixtures and damp locations
Easy installation with AC direct or ballast bypass
5-year warranty for peace of mind

Specifications

Wattage: 18W|27W|36W
Lumens: 5220lm
Voltage: 120-277V AC
Color Temperature: 3000K|4000K|5000K
CRI: ≥80
Beam Angle: 280°
Power Factor: >0.9
THD: ≤20%
Dimensions: 6.3"(H) x 2.36"(W)

Common Uses

Ideal for supermarkets, warehouses, garages, offices, hotels, hospitals, schools, and high bay retrofits. Also great for post tops, area lights, and shoebox fixtures.

RESOURCES AND DOWNLOADS

Westgate CL-XHL Series LED Corn Lamp Spec Sheet

Details

Beam Angle:	360°
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|DLC Standard\|UL Listed
Dimming Type:	Non-Dimming
Efficacy:	145LM/W
Finish / Color:	Silver
Housing Material:	Aluminum
Item Height (Inch):	8.31
Item Length (Inch):	3.35
Item Weight (LBS):	1.23
Item Width (Inch):	3.35
L70 Expected Life (hours):	50000hrs
LED Type:	Lumileds 2835
Lens Material:	PC
Lumen Output:	5220\|2610\|3915
Operating Temperature:	-40°F to 122°F
Power Factor:	?0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	?20%
Voltage:	120-277V
Wattage:	18W\|27W\|36W
