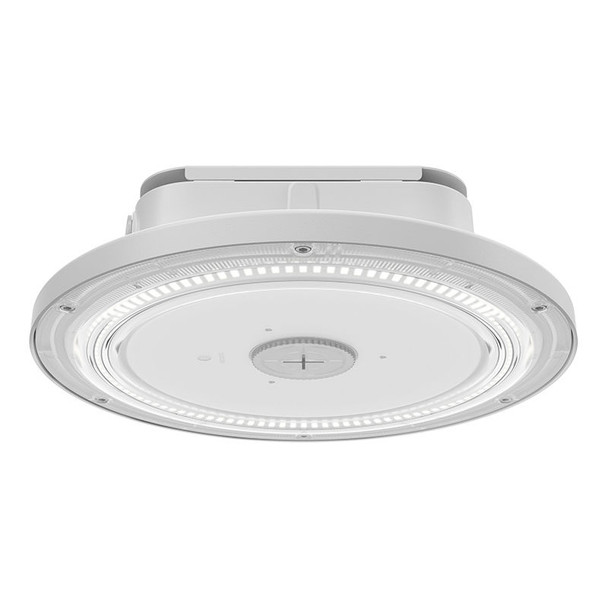

The Westgate CXU Series X-GEN Garage Light with Uplight is a versatile, high-performance fixture designed for modern indoor parking, garages, and commercial spaces. With selectable wattages (18W/30W/45W/60W) and color temperatures (3000K/4000K/5000K), this sensor-ready light delivers up to 9900 lumens and is built to withstand tough environments.

Key Features and Benefits

• Selectable wattage and color temperature for tailored lighting
• Up to 9900 lumens with high efficacy (165 LPW)
• 0-10V dimmable for energy savings and flexibility

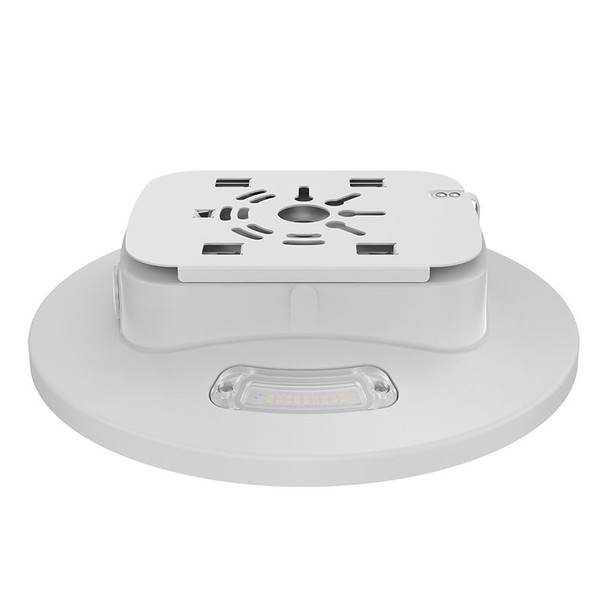

• Integrated uplight (10% up, 90% down) for balanced illumination
• Twist-lock Zhaga socket pre-installed for easy sensor integration
• Rugged die-cast aluminum housing with prismatic polycarbonate lens
• IP65 rated for wet locations and harsh conditions
• Long 70,000-hour rated lifespan and 7-year warranty

Specifications

• Wattage: 18W | 30W | 45W | 60W selectable
• Lumens: 2970lm | 4950lm | 7425lm | 9900lm
• Voltage: 120-277VAC
• Color Temperature: 3000K | 4000K | 5000K selectable
• CRI: >80
• Beam Angle: 150°
• Dimensions: 10"(D) x 3"(H)
• Operating Temp: -40°F to 131°F

Common Uses

Perfect for indoor parking garages, commercial buildings, schools, warehouses, retail centers, apartment complexes, and garages where robust, flexible lighting is needed.
