X-GEN 160 LM/W Canopy Light With Uplight 30/50/75/100W 3CCT Sensor Ready, Silver

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

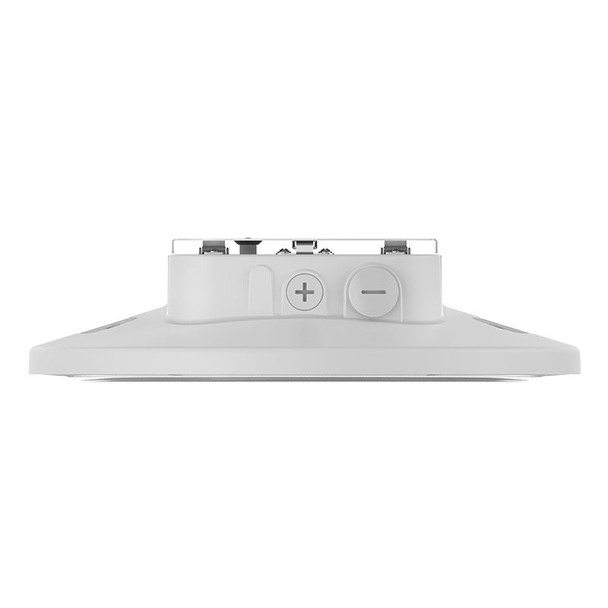

X-GEN 160 LM/W Canopy Light With Uplight 30/50/75/100W 3CCT Sensor Ready, Silver

$219.74
MSRP: $247.78
You save $ 28.04 (11%)
  • SKU: WM-CXU-30-100W-MCTP-SR-SIL
  • MPN: CXU-30-100W-MCTP-SR-SIL

Quick Overview

X-GEN 160 LM/W Canopy Light With Uplight 30/50/75/100W 3CCT Sensor Ready, Silver (wattage: 30W/50W/75W/100W; lumens: 16500LM; CCT: 30K/40K/50K; voltage: 120-277V; finish: Silver; White)

WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 234
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate CXU Series X-GEN Garage Light is a versatile, high-performance fixture designed for modern parking garages and commercial spaces. With selectable wattage (30W/50W/75W/100W) and color temperature (3000K/4000K/5000K), this sensor-ready, silver-finished fixture delivers up to 16,500 lumens and features an integrated uplight for enhanced visibility and safety.

Key Features and Benefits

  • Selectable wattage and color temperature for maximum flexibility
  • High efficacy at 165 LPW, delivering up to 16,500 lumens
  • Integrated uplight (10% up, 90% down) for improved illumination
  • Twist-lock Zhaga socket pre-installed for easy sensor integration
  • 0-10V dimmable for energy savings and control
  • Durable die-cast aluminum housing with IP65 rating for wet locations
  • Long 70,000-hour rated lifespan and 7-year warranty
  • Wide 150° beam angle for broad coverage

Specifications

  • Wattage: 30W|50W|75W|100W (Selectable)
  • Lumens: 4950lm|8250lm|12375lm|16500lm
  • Voltage: 120-277VAC
  • Color Temperature: 3000K|4000K|5000K
  • CRI: >80
  • Operating Temp: -40°F to 131°F
  • Dimensions: 12.7"(D) x 3.3"(H)
  • IP65 rated for wet locations
  • 0-10V dimming capability

Common Uses

Ideal for indoor parking garages, commercial buildings, schools, warehouses, apartment complexes, and similar large indoor spaces requiring efficient, flexible lighting.
