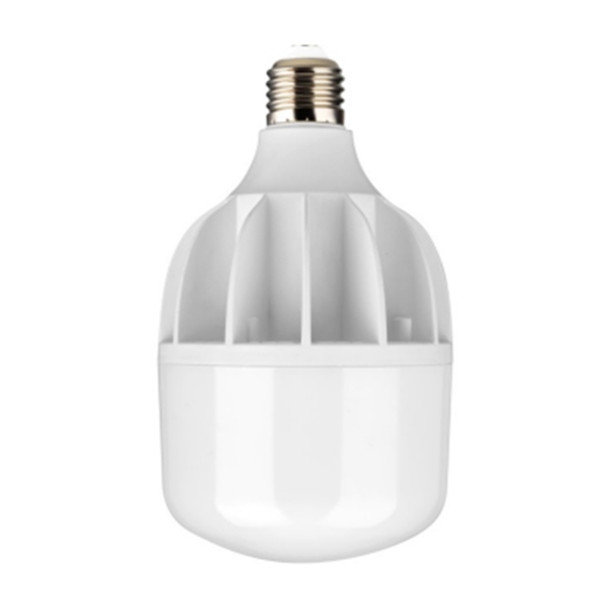

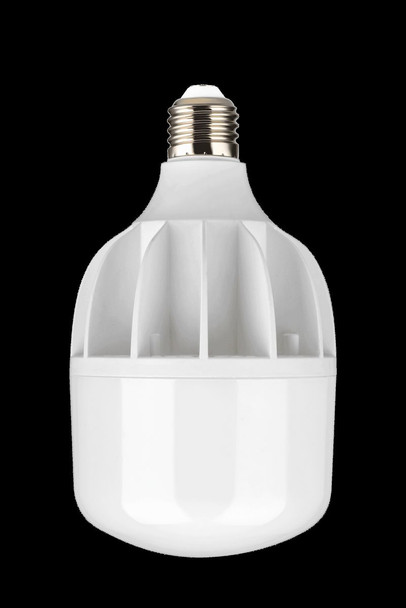

The WM-HPL 24W LED High Bay Retrofit Lamp is a perfect solution for retrofitting your existing HID high bay fixtures. This energy-efficient lamp delivers superior lighting performance and can be used in enclosed luminaires, making it a versatile option for various commercial and industrial applications.
ELECTRICAL SPECIFICATIONS
- Voltage: 120-277VAC 50/60Hz
- Wattage: 24W
- Power factor: >0.90
- Efficacy: 125LM/W
- THD: 25%
LIGHTING SPECIFICATIONS
- Lens: PC Lens
- Total lumens: 3000LM
- Color temperature: 5000K/3000K
- Color rendering index: >80
- Beam Angle: 200º
HOUSING SPECIFICATIONS
- Plastic Housing
- No Fan Housing (New Technology)
- Lamp Base: E26 Mogul Base
- Operating Temperature: -4°F ~ 122°F
- Lifespan: 50,000 hours
- IP rating: Suitable for damp location
| SKU | WM-HPL |
|---|---|
| Weight | 4.00 LBS |
| Color Rendering Index (CRI) | >80 |
| Color Temperature (CCT) | 3000K, 4000K |
| Total Input Watts | 16W |
| Lumen Output | 2000 |
| Color Temperature (CCT) | 3000K |
| Voltage | 120-277V |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 24W |
| Lumen Output | 3000 |
| Total Input Watts | 32W |
| Lumen Output | 4000 |
