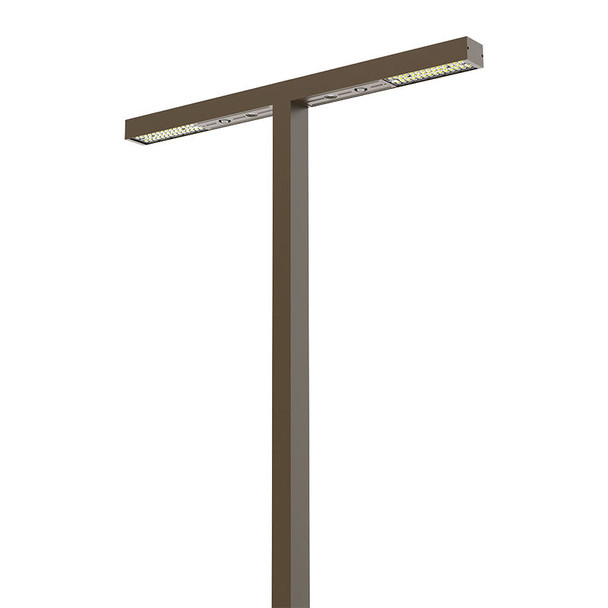

The Westgate LFXU Series Urban Area and Roadway Light is a versatile LED fixture designed for 4-inch poles, perfect for streets, parking lots, and public spaces. Its robust construction, selectable wattage and color temperature, and photocell-ready design make it a standout solution for outdoor lighting needs.

Key Features and Benefits

• Selectable wattage (25W, 50W, 75W) and color temperature (3000K, 4000K, 5000K) for ultimate flexibility
• High efficacy at 150 lm/W for energy savings
• Maximum output up to 11,250 lumens
• Photocell ready for automatic dusk-to-dawn operation
• 0-10V dimming capability
• Durable AL1060 aluminum housing with outdoor powder coating
• IP66 rated for wet locations and harsh weather
• Type V distribution (150° x 150° beam angle) for broad, even illumination
• Long 70,000-hour rated lifespan and 7-year warranty
• Pre-installed sensor socket for motion sensor compatibility
• 10KV lightning surge protection included

Specifications

• Wattage: 25W | 50W | 75W (selectable)
• Lumens: 3750lm | 7500lm | 11250lm (selectable)
• Color Temperature: 3000K | 4000K | 5000K (selectable)
• Voltage: 100-277V AC, 50/60Hz
• CRI: >70
• Dimensions: 2.95"(D) x 27.72"(W) x 3.94"(H)
• IP66, suitable for wet locations
• Type V beam angle

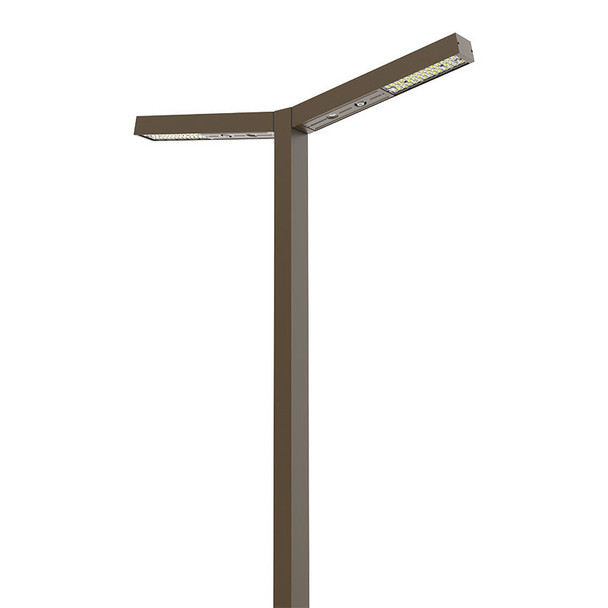

• Photocell and 10° wedge mounting adaptor included
• Poles not Included

Common Uses

Ideal for urban streets, parking lots, roadways, plazas, factories, parks, and residential outdoor areas where reliable, energy-efficient lighting is essential.
