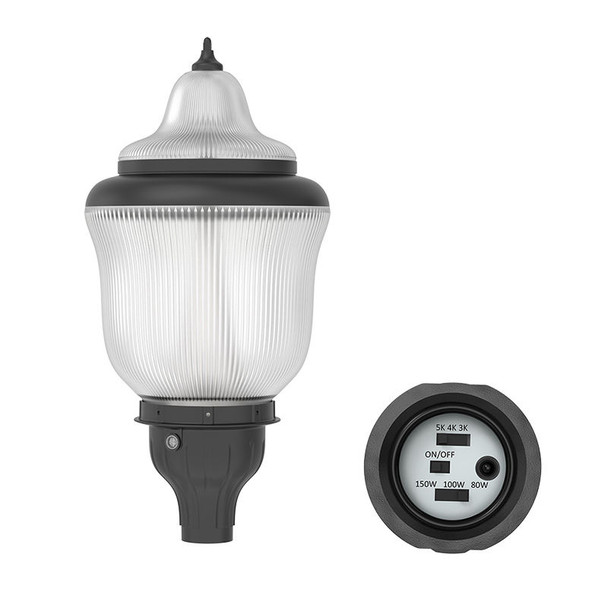

The Westgate GPA Series LED Acorn Area Light blends classic acorn styling with modern LED technology, making it a standout choice for outdoor pedestrian and area lighting. This fixture features selectable wattage (80W, 100W, 150W) and color temperature (3000K, 4000K, 5000K), offering flexibility for various applications and environments. Its robust construction and high efficacy ensure reliable, energy-efficient performance in parks, walkways, streetscapes, and more.

Key Features and Benefits

Classic acorn design enhances traditional and historic architecture
Selectable wattage and color temperature for tailored lighting
High efficacy up to 135 lm/W for energy savings
Maximum lumen output of 20,250lm for superior illumination
Durable die-cast aluminum housing with weather-resistant powder coating
IP65 rated for wet locations and outdoor durability
Long 50,000-hour rated lifespan reduces maintenance
Fits standard 3” OD poles for easy installation
5-year warranty for peace of mind

Specifications

Wattage: 80W|100W|150W (Selectable)
Lumens: 10800lm|13500lm|20250lm
Color Temperature: 3000K|4000K|5000K (Selectable)
Voltage: 120-277V
CRI: >70
Power Factor: 0.9
THD: <20%
Beam Angle: Type V 360°
Dimensions: 32.72"(W) x 3.46"(H) x 16"(D)
Operating Temp: -40°C to 40°C (-40°F to 104°F)
IP65 Rated

Common Uses

Ideal for parks, pedestrian walkways, downtown streetscapes, plazas, courtyards, campuses, municipal grounds, and parking lot perimeters.

RESOURCES AND DOWNLOADS

Westgate GPA Series LED Acorn Area Light Spec Sheet

Details

Beam Angle:	360°
CRI:	70
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|UL Listed
Dimming Type:	0-10V
Efficacy:	135LM/W
Finish / Color:	Black
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	32.72
Item Length (Inch):	16
Item Weight (LBS):	13.67
Item Width (Inch):	16
L70 Expected Life (hours):	50,000hr
LED Type:	Lumileds 2835
Lens Material:	PC
Lumen Output:	20250\|10800\|13500
Operating Temperature:	-40℉~+104℉
Power Factor:	>0.90
Ships From:	CA
Special Features:	Selectable CCT\|Selectable Wattage\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	80W\|100W\|150W
