Description

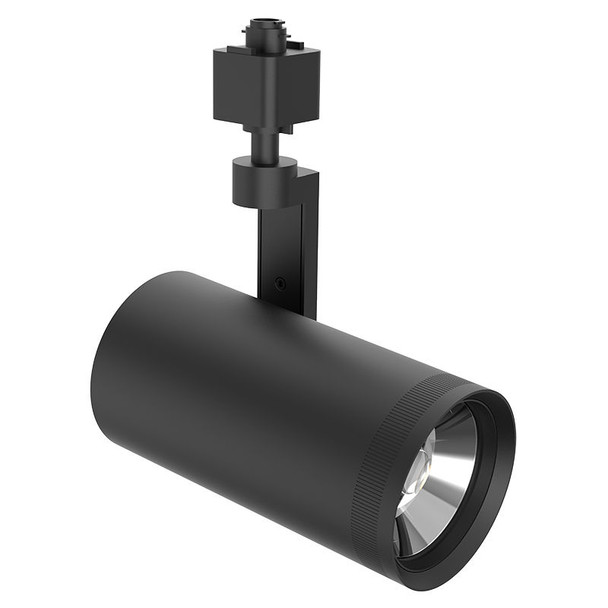

This versatile track lighting solution offers selectable wattage and CCT (Correlated Color Temperature) options, providing flexibility to meet various lighting needs. Available in both H-Type and J-Type configurations, with a convenient conversion kit to adapt between types, ensuring compatibility and ease of installation. Ideal for retail, gallery, and commercial applications where precise illumination control is essential.

Key Features and Benefits

Selectable wattage: 20W, 25W, 30W
Selectable color temperature: 2700K, 3000K, 3500K, 4000K, 5000K
High CRI ≥ 90 for excellent color rendering
Adjustable beam angle: 20°-50°
Flicker-free dimming down to 10% with Triac and ELV dimmers
Die-Cast Aluminum with Powder Coated Finish
High Light Transmittance, Anti-UV and Fire Resistant PC Lens
Effortlessly installed into H-Type single-circuit track
Long lifespan of 70,000 hours
7-Year Warranty

Specifications

Voltage: 120V AC / 50-60 Hz
Power Factor: >0.95
Efficacy: 90 LPW
Total Lumens: 1800LM, 2250LM, 2700LM
Operating Temperature: -4ºF to 104ºF
90° vertical adjustment, 358° rotation

Common Uses

Retail Stores: Enhance product displays with adjustable lighting that draws attention and creates a welcoming shopping experience. Galleries and Museums: Showcase artwork with precision lighting that can be easily adjusted to suit different exhibits. Commercial Spaces: Provide flexible lighting solutions that can adapt to changing needs and layouts.

RESOURCES AND DOWNLOADS

Standard Track Head Spec Sheet

Westgate Resources and Downloads

Spec Sheet

Details

Beam Angle:	20°-50°
CRI:	90
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|ETL Listed
Country of Origin:	CHINA
Dimming Type:	Phase
Efficacy:	90LM/W
Finish / Color:	White\|Black
Housing Material:	Aluminum
IP Rating:	IP40
Item Height (Inch):	6.89
Item Length (Inch):	3.35
Item Weight (LBS):	2.61
Item Width (Inch):	3.35
L70 Expected Life (hours):	50000hrs
Lumen Output:	2700
Operating Temperature:	-4°F~113°F
Power Factor:	≥0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT
THD:	＜20%
Voltage:	120V
Wattage:	20W\|25W\|30W
