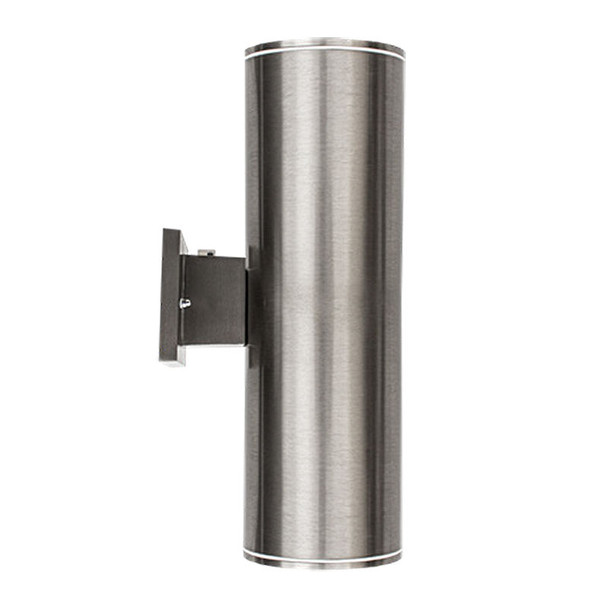

6" LED Cylinder Light - Versatile Outdoor Lighting Solution

The 6" LED Cylinder Light delivers exceptional outdoor illumination with dual up and down lighting capabilities. Ideal for both commercial and residential applications, this energy-efficient fixture operates on a wide voltage range of 120-277V and features a photocell for automatic dusk-to-dawn operation. Its durable die-cast aluminum housing and sleek, modern design make it the perfect choice for enhancing architectural elements, entryways, facades, and walkways. This fixture provides reliable, energy-saving lighting that adapts to changing daylight conditions.

Key Features and Benefits

• Advanced COB Technology with Prismatic Reflector and Frosted Lens
• Durable Die-Cast Aluminum Housing
• Selectable Multi Color Temperature and Multi Power/Wattage (Switch Under the Mounting Arm)
• Dual Function Dimming: Triac Dimmable at 120V and 0-10V Dimming at 120-277V
• Integrated Photocell for Automatic Dusk-to-Dawn Operation
• Versatile Up and Down Light Directions
• Rated Life of 70,000 Hours
• Comprehensive 7-Year Warranty
• IP65 Rated for Weather-Tight Seal

Specifications

• Voltage: 120-277VAC 60Hz
• Wattage: 2x12W/2x16W/2x20W
• Power Factor: >0.90
• Efficacy: 80 LM/W
• Lumens Output: 960LM/1280LM/1600LM
• Color Temperatures: 3000K, 4000K, 5000K
• Color Rendering Index (CRI): ≥80
• Beam Angle: 40° for Each Side
• Dimensions: 17 7/8” H x 8 1/2” W x 6” D

Common Uses

Perfect for general site lighting, walkways, stairways, alleys, loading docks, doorways, pathways, and parking areas.
