4in Wall Cyl. UP/DOWN Light 30W 3CCT 3WATTS DUAL-DIM Ph. Cell - Antique Brz

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

4in Wall Cyl. UP/DOWN Light 30W 3CCT 3WATTS DUAL-DIM Ph. Cell - Antique Brz

$113.74
MSRP: $128.78
You save $ 15.04 (12%)
  • SKU: WM-WMC4-UDL-MCTP-DD-P
  • MPN: WMC4-UDL-MCTP-DD-P

Quick Overview

4in Wall Cyl. UP/DOWN Light 30W 3CCT 3WATTS DUAL-DIM Ph. Cell - Antique Brz (wattage: 2x9W/2x12W /2x15W; lumens: 2400LM; efficacy: 80LM/W; CCT: 3000K/4000K/5000K; 30K/40K/50K; voltage: 120-277V)

WARRANTY 7 YEARS
IP44
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

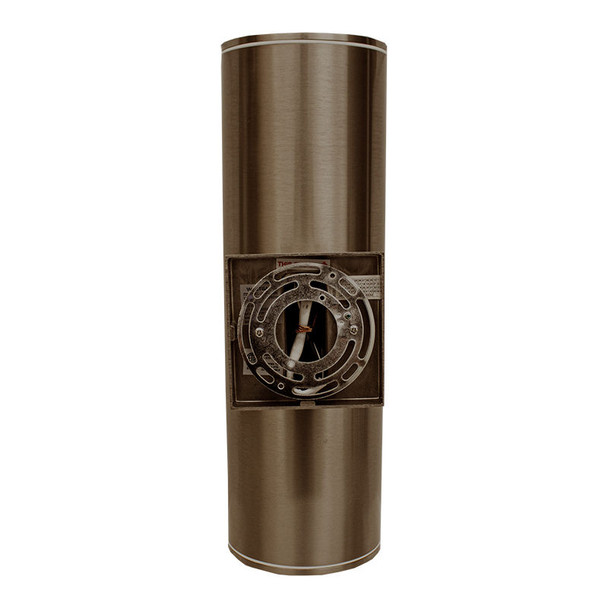

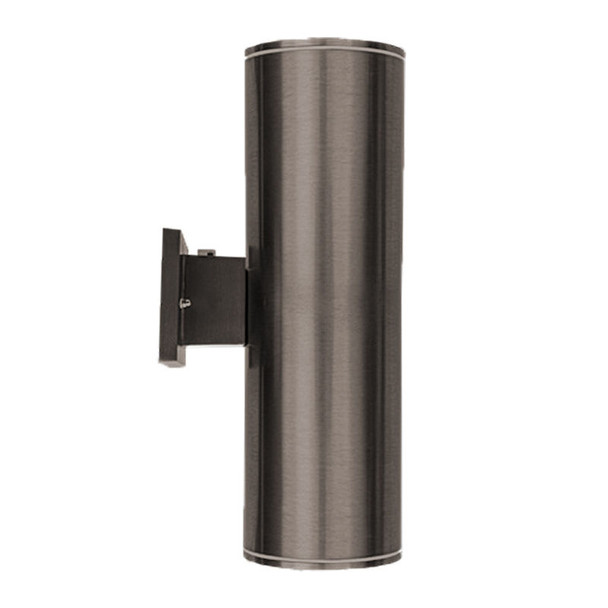

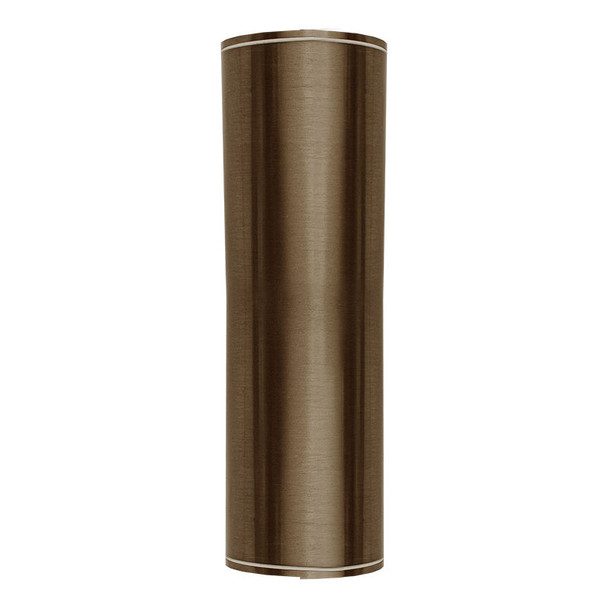

4” LED Cylinder Light – Up and Down Lighting

The 4” LED Cylinder Light provides versatile and efficient illumination for both commercial and residential spaces. Designed with up and down lighting capabilities, this fixture enhances architectural details and promotes safety and aesthetics in outdoor settings. It operates seamlessly on a wide voltage range of 120-277V, ensuring reliable functionality in various applications from entryways to walkways.

Key Features and Benefits

  • Advanced COB Technology with Prismatic Reflector and Frosted Lens for optimal light distribution
  • Robust Die-Cast Aluminum Housing ensures durability and longevity
  • Selectable Multi Color Temperature and Multi Power/Wattage via a switch under the mounting arm
  • Dual Function Dimming: Triac Dimmable at 120V and 0-10V Dimming at 120-277V
  • Integrated photocell for automatic dusk-to-dawn operation
  • Up and down lighting capabilities for enhanced coverage
  • Industry-leading 7-Year Warranty for peace of mind
  • IP65 rating, providing a reliable weather-tight seal

Technical Specifications

  • Voltage: 120-277VAC 60Hz
  • Wattage: Selectable at 2x12W, 2x16W, 2x20W
  • Power Factor: Greater than 0.90
  • Efficacy: 80 Lumens per Watt
  • Color Temperature Options: 3000K, 4000K, 5000K
  • Color Rendering Index (CRI): ≥ 80
  • Beam Angle: 40° for each side
  • Rated Life: 70,000 Hours
  • Dimensions: 17 7/8” H x 8 1/2” W x 4” D

Common Uses

Ideal for general site lighting, walkways, and stairways, alleys, loading docks, doorways, pathways, and parking areas. The photocell ensures the fixture adapts to changing daylight conditions, making it an energy-efficient choice for your lighting needs.

RESOURCES AND DOWNLOADS

4” LED Cylinder Light Spec Sheet
