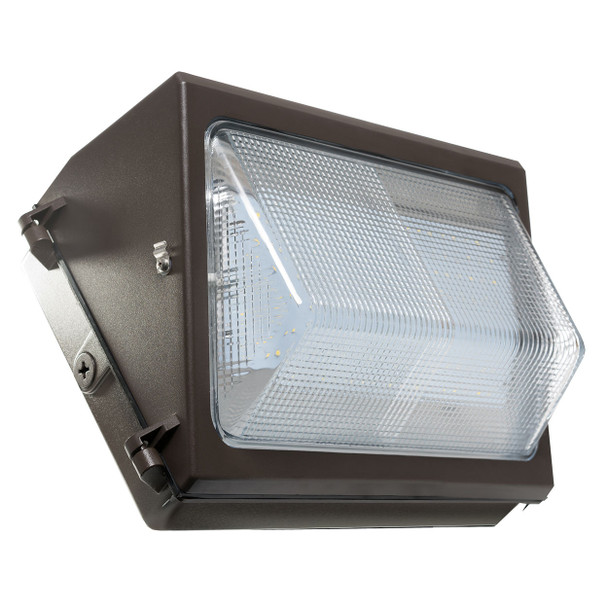

WML-HL Series LED Outdoor Lighting - WML-HL-80W-30K Model

The WML-HL-80W-30K LED Outdoor Lighting is an advanced and efficient lighting solution ideal for various outdoor settings such as general site lighting, alleys, loading docks, doorways, pathways, and parking areas. With an impressive output of 11,600 lumens and a selectable color temperature of 3000K, this fixture provides bright and energy-efficient illumination.

Key Features and Benefits

• High-quality prismatic Borosilicate glass lens for excellent light distribution.
• Extreme efficiency with 145 lumens per watt.
• 0-10V dimming capability for customizable light levels.
• Rugged die-cast aluminum housing with a dark bronze powder coat finish, ensuring durability and weather resistance.
• Compatible footprint with traditional HID wall packs for easy upgrades.

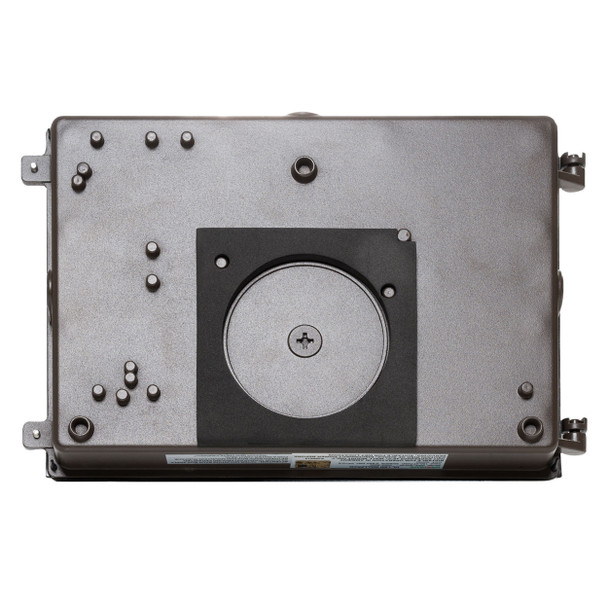

• Four 1/2" hubs positioned on top, both sides, and rear for versatile mounting options.
• IP65 rated for wet locations, making it suitable for all outdoor applications.
• Wide operating temperature range from -4°F to 104°F.
• Extended lifespan of 70,000 hours, backed by a 7-year warranty.

Technical Specifications

• Input Wattage: 80W
• Input Voltage: 120-277VAC 50/60Hz
• Input Current: 0.52A
• Power Factor: >0.95
• Total Lumens: 11,600LM
• Color Temperature: 3000K
• CRI: >80
• Dimensions: 15 1/4"(W) x 9 1/2"(H) x 7 1/2"(D)
• BUG Rating: B2-U5-G5

Common Uses

This fixture is perfect for replacing existing HID wall packs and is compatible with photocells for enhanced energy savings. It's ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas.

Resources and Downloads

WML-HL Series LED Outdoor Lighting Spec Sheet
