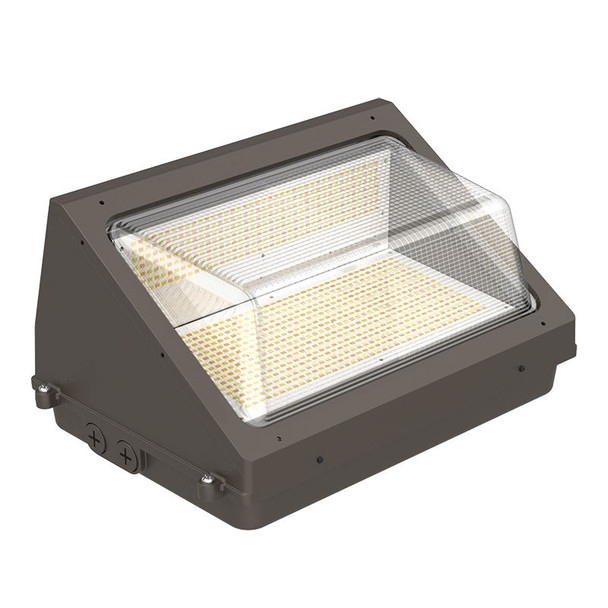

MAX-OPTION Traditional Wall Pack 3CCT 50/60/80W Photocell Beam Angle Select

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

MAX-OPTION Traditional Wall Pack 3CCT 50/60/80W Photocell Beam Angle Select

$154.74
MSRP: $174.78
You save $ 20.04 (11%)
  • SKU: WM-WMXMAX-50-80W-MCTPB
  • UPC: 840378314480
  • MPN: WMXMAX-50-80W-MCTPB

Quick Overview

MAX-OPTION Traditional Wall Pack 3CCT 50/60/80W Photocell Beam Angle Select (wattage: 50W/60W/80W; lumens: 10800; efficacy: 135LM/W; CCT: 30K/40K/50K; voltage: 120-277V)

IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 1229
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Westgate WMXMAX LED Outdoor Lighting: Adjustable, Efficient, and Durable

Discover the versatility and efficiency of the WMXMAX series LED Outdoor Lighting from Westgate Manufacturing. This cutting-edge fixture is engineered to replace traditional HID wall packs while providing superior performance, extended longevity, and substantial energy savings. With adjustable wattage and color temperature, it’s perfect for various outdoor environments.

Key Features and Benefits

  • Adjustable Wattage: 50W, 60W, 80W – Customize the light output according to your needs.
  • Selectable Color Temperature: 3000K, 4000K, 5000K – Choose the ideal lighting ambiance for any setting.
  • Built-in Photocell: Enables automatic on/off control, enhancing energy efficiency.
  • Advanced Optics: Prismatic Borosilicate Glass Lens ensures optimal light distribution across wide areas.
  • Durable Construction: ADC12 Aluminum Heat Sink with outdoor powder coating offers robust protection.
  • Dimming Capability: Supports 0-10V dimming for flexible lighting control.
  • High Efficacy: Achieves 135 lumens per watt, maximizing light output and minimizing energy cost.
  • Long Lifespan: 70,000 hours of reliable illumination, reducing maintenance expenses.
  • Weather-Resistant: IP65 rating for wet locations ensures reliable operation in various weather conditions.

Specifications

  • Input Voltage: 120-277V AC 50/60Hz
  • Input Current: 0.6A
  • Power Factor: >0.9
  • Total Lumens: Up to 10800LM
  • CRI: >70
  • Operating Temperature Range: -40°F ~ 133°F
  • Dimensions: 14.21"(W) x 7.64"(H) x 9.25"(D)

Applications

This versatile light is perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, providing brilliant and reliable illumination where it's needed most.

Resources and Downloads

Download the WMXMAX Spec Sheet

Westgate Resources and Downloads
