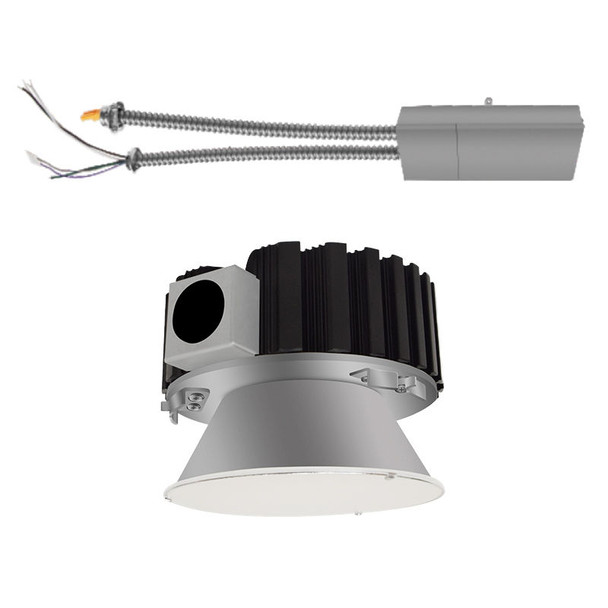

Introducing the Westgate Manufacturing's CRLX Series
Upgrade your commercial indoor lighting with Westgate Manufacturing's CRLX Series. This 4-Inch Recessed Commercial Lighting fixture is purposefully designed to meet the diverse needs of various settings, from conference rooms to retail outlets. Notably, it offers adjustable wattage and color temperature, ensuring you can create the perfect ambiance for any environment.
Key Features and Benefits
- Multi-Color Temperature Selection: Easily switch between 3000K, 3500K, and 4000K to suit different lighting needs.
- Adjustable Lumen Outputs: Choose from 1120LM, 1600LM, or 2160LM for optimal brightness.
- High Efficacy: Delivers 80 Lumens Per Watt (LPW), ensuring energy efficiency.
- Dimmable: Features 0~10V dimming capability for customizable light levels.
- Long Lifespan: Rated for up to 50,000 hours, reducing maintenance needs.
- 5-Year Warranty: Peace of mind with a reliable warranty.
- Sleek Appearance: Haze finish trim for a modern look.
- Clean Installation: Recessed mounting for an integrated appearance.
- Suitable for Damp Locations: Ideal for various commercial settings.
Technical Specifications
- Voltage: 120-277VAC 50/60Hz
- Power Factor: Greater than 0.90
- Color Rendering Index: Greater than 80
- Temperature Rating: Operates efficiently in temperatures up to 113°F
- Non-IC Rated: Designed for non-insulated ceiling applications
Common Uses
Perfect for use in hotels, offices, retail outlets, restaurants, parking garages, conference rooms, and educational facilities, this fixture offers unparalleled versatility and performance.
RESOURCES AND DOWNLOADS
X-Gen. LED Commercial Recessed Light, 14W-27W MCTP Spec Sheet
SKU | WM-CRLX4-14-27W-MCTP |
---|---|
Weight | 16.00 LBS |
Total Input Watts | 14W |
Total Input Watts | 20W |
Total Input Watts | 27W |
Lumen Output | 80/W |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 3500K |
Color Temperature (CCT) | 4000K |
Voltage | 120-277V |
