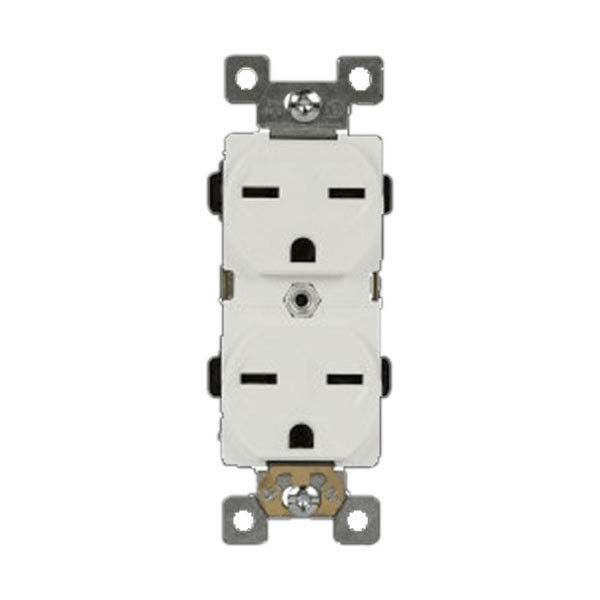

15A duplex receptacle industrial grade heavy duty duplex receptacle, 6-15R, white finish, 15 amp/250-volt, flammability UL94, V2 rating, with ears; straight blade; side wired; steel strap, NEMA 6-15R, 2P and 3W, shallow design for maximum wiring room.
DESCRIPTION
Enerlites' Industrial Grade Receptacles are rated for variety of standard configuration and its smooth face design does not collect dirt. Each duplex is equipped with break-off plaster ears and tabs to allow for easy alignment and 2-circuit conversion. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room
FEATURES
- 15 amp/250-Volt
- Flammability UL94, V2 Rating.
- With ears; straight blade; side wired; steel strap
- NEMA 6-15R, 2P and 3W
- Shallow design for maximum wiring room
SPECIFICATIONS
- Type: Two Pole
- Color Availability: White
- Grounding: Grounding
- Amperage: 15Amp
- Voltage: 250V
- Termination: Rear and Side Wired Thermoplastic Cover and Body
- Standards and Certifications: UL Listed
RESOURCES AND DOWNLOADS
Industrial Grade Heavy Duty 15A Duplex Receptacle Spec Sheet
| SKU | EN-61571-W |
|---|---|
| Weight | 1.00 LBS |
