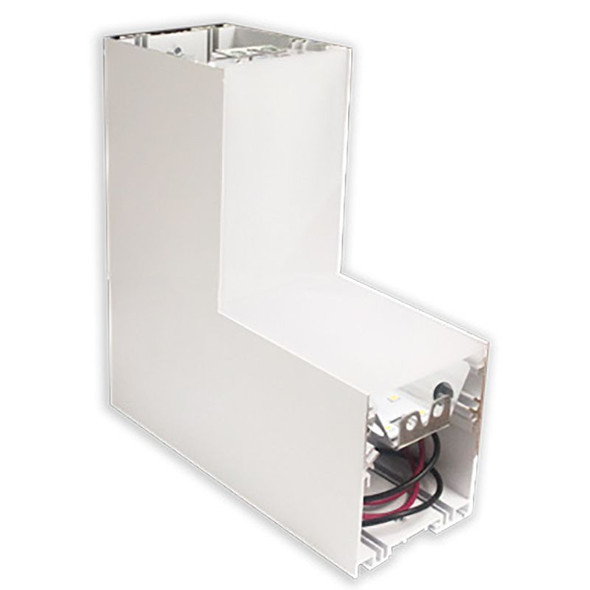

Name: 2-3/4" X Module Seamless Linear Corner Fixture
Brand: Westgate Manufacturing
SKU: WM-SCX-X
Price: 89.85 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

Elevate Your Space with the SCX Series X Module by Westgate Manufacturing

The SCX Series X Module by Westgate Manufacturing sets a new standard in linear lighting, combining aesthetic elegance with functional efficiency. Designed for diverse commercial applications, this lighting solution exemplifies innovation and adaptability within Westgate's distinguished product lineup.

Key Features and Benefits

Selectable Color Temperature: Customize your lighting atmosphere with options ranging from 3000K to 5000K, accessible through an internal switch.
High Lumen Output: Achieve a brilliantly illuminated space that enhances visibility and ambiance.
Longevity and Reliability: Boasts an impressive 50,000-hour rated life and includes a 5-year warranty for peace of mind.
Sleek Design: Features a low-profile, modern aesthetic that seamlessly blends with various interior styles.
Durable Construction: Made with a robust aluminum housing and an opal polycarbonate lens for superior light diffusion.
IP54 Rating: Provides protection against dust and splashes, making it versatile for numerous indoor environments.
Dimmable Functionality: Supports 0~10V dimming, offering control over lighting levels and energy usage.

Specifications

Model: SCX-X, available in 3000K, 3500K, 4000K, and 5000K color temperatures.
Dimensions: 24” (L) x 2 6/8” (W) x 3 3/8” (H).
Electrical Voltage: 120-277VAC 50/60Hz.
Power Factor: >0.95.
Beam Angle: 104.8° (H) x 100.5° (V).
Custom colors available upon request.

Common Uses

The SCX Series X Module is perfect for a range of indoor settings, including offices, retail spaces, educational institutions, and hospitality venues. Its modular design allows for creative configurations, making it an ideal choice for areas requiring both functional lighting and a touch of architectural elegance.

Westgate Resources and Downloads

Details

CRI:	80
Color Temperature:	3000K\|3500K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty
Country of Origin:	CHINA
Dimming Type:	0-10V
Finish / Color:	White
Housing Material:	Aluminum
IP Rating:	IP54
Item Height (Inch):	3.3464566929133857
Item Length (Inch):	7.086614173228347
Item Weight (LBS):	1.1023113109243878
Item Width (Inch):	7.086614173228347
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Polycarbonate
Lumen Output:	733\|863\|944\|1037
Operating Temperature:	-13°F~104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
Voltage:	120-277V
