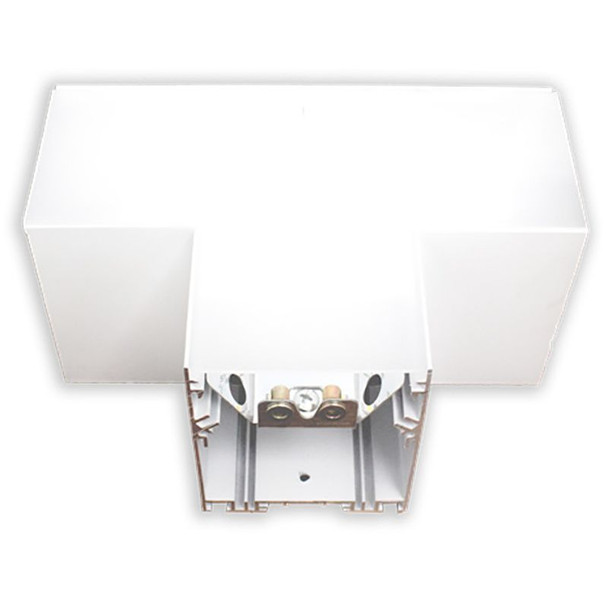

Name: 2-3/4" T Module Seamless Linear Corner Fixture
Brand: Westgate Manufacturing
SKU: WM-SCX-T
Price: 21.3 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

Introducing the Westgate Manufacturing SCX Series T Module

The Westgate Manufacturing SCX Series T Module is an exceptional lighting solution that delivers both efficiency and a sleek, modern design. This state-of-the-art fixture epitomizes Westgate's dedication to providing top-tier architectural lighting that caters to the evolving needs of contemporary environments.

Key Features and Benefits

Seamless Linkable System: Achieve continuous runs of light without any gaps, making it perfect for extensive installations.
Customizable Ambiance: Multiple color temperatures, selectable via an inside fixture switch, let you set the perfect ambiance (3000K, 3500K, 4000K, 5000K).
High Lumen Output: Ranging from 2240LM to 2420LM, ensuring bright and highly effective lighting solutions.
Energy-Efficient Design: The low wattage consumption is designed to maximize energy savings while providing high-quality illumination.
Extended Lifespan: Boasts a rated life of 50,000 hours, significantly reducing ongoing maintenance costs.
Peace of Mind Warranty: Comes with a 5-year warranty that assures quality and reliability.
Dimmable: Equipped with 0~10V dimming capability for versatile lighting control.
Durable Construction: IP54 rating for a dust and splash-resistant build ensures longevity.

Specifications

Dimensions: 24”(L) x 2 6/8”(W) x 3 3/8”(H)
Electrical Voltage: 120-277VAC 50/60Hz
Power Factor: Greater than 0.95
Beam Angle: 104.8°(H) x 100.5°(V)
High-Quality Build: Aluminum housing with a sophisticated matte white finish, available in optional custom colors.

Common Uses

This cutting-edge SCX Series T Module is perfect for enhancing both the aesthetics and functionality of various modern architectural spaces, including offices, hotels, corridors, salons, libraries, meeting rooms, and conference halls. Its design is ideal for creating unique and elevated atmospheres in any indoor environment.

Westgate Resources and Downloads

Details

CRI:	80
Color Temperature:	3500K\|4000K\|5000K\|3000K
Compliance & Warranty:	5 Year Warranty
Country of Origin:	CHINA
Dimming Type:	0-10V
Finish / Color:	White
Housing Material:	Aluminum
IP Rating:	IP54
Item Height (Inch):	3.3464566929133857
Item Length (Inch):	7.086614173228347
Item Weight (LBS):	1.1023113109243878
Item Width (Inch):	4.921259842519685
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Polycarbonate
Lumen Output:	726\|787\|854\|629
Operating Temperature:	-13°F~104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
Voltage:	120-277V
