Description

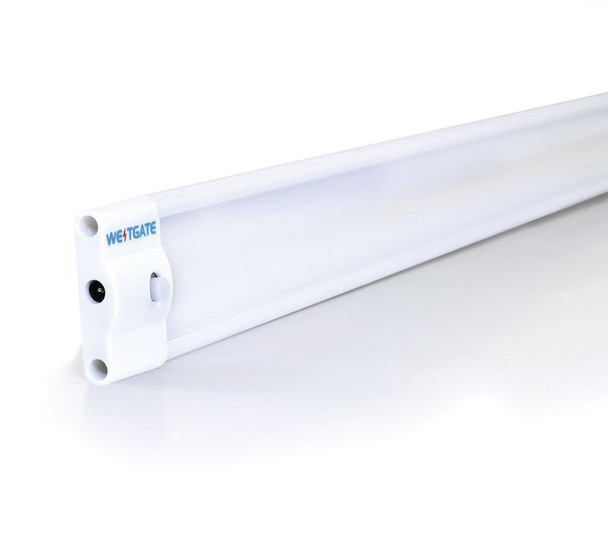

20-inch LED undercabinet, 12 volt, 5 watts, 420-462 lumens, available in 3000K or 6000K color temperature (CCT), suitable for interior applications only, 5 years warranty.

Very low profile, easy to install, cool to the touch High brightness with excellent color rendition and years of maintenance ifree operation. Wide selection of mounting hardware, accessories and LED drivers

ELECTRICAL SPECIFICATIONS

Highly efficient SMD 3528 chip technology
Integral switch, push on - push off
Working voltage: 24V DC - (driver required)
Plug in electronic or hard wired magnetic drivers available

MOUNTING

Mounting hardware and coupler included
Polycarbonate and caps with universal feed thru mono-pin receptacle

WARRANTY

Five-year warranty

LIGHTING SPECIFICATIONS

Color temperatures: warm white (3000K), cool white (6000K)
Suitable for interior applications only
Ambient temperature rating: –20°C (4°F) to +40°C (104°F)
Max continuous run:; 24w (5”)
Dimmable using magnetic low voltage transformer:
1. Hardwire application will require “magnetic low voltage dimmable driver DC” For WestGate UCM Series-use compatible “magnetic low voltage wall dimmer”
2. The touch dimmer or the “in line dimmer” can only be used with the in line transformer

HOUSING SPECIFICATIONS

Ultra-low profile—only 1/4” deep
Extruded aluminum housing with white powder coat finish
Smooth white acrylic lens (.125” thickness). No lamp imaging

CERTIFICATIONS

UL-listed

RESOURCES AND DOWNLOADS

20" LED 5W Undercabinet, 12V Spec Sheet

Westgate Resources and Downloads

Details

Color Temperature:	3000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Driver Type:	24VDC
Finish / Color:	White
Fixture Size:	20" Linear
Housing Material:	Aluminum
Item Height (Inch):	1.25
Item Length (Inch):	20
Item Weight (LBS):	9.6
Item Width (Inch):	1.25
LED Type:	SMD Chip 3528
Lens Material:	PC Lens
Light Source:	LED
Lumen Output:	420\|462
Operating Temperature:	-4°F to 104°F
Ships From:	CA
Voltage:	12V
Wattage:	5W
