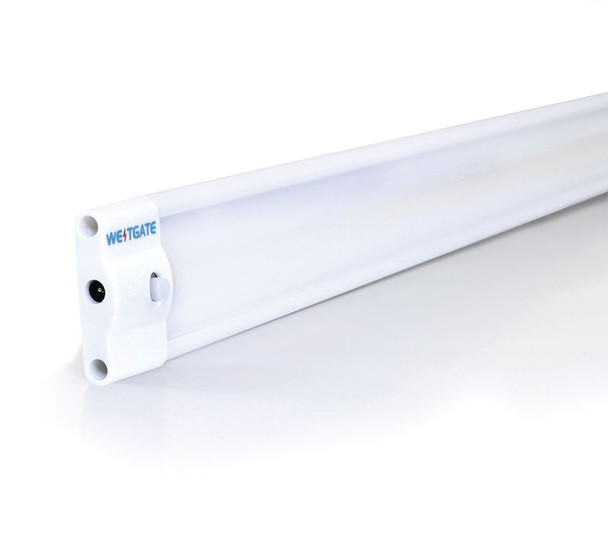

32-inch LED Under Cabinet Light - High Efficiency and Versatile Lighting Solution
Experience powerful illumination with the 32-inch LED undercabinet light. Operating at 12 volts and consuming only 8 watts, this fixture delivers a bright output of 590-640 lumens. It offers a choice of warm 3000K or cool 6000K color temperatures, making it perfect for various interior applications. Enjoy peace of mind with a comprehensive 5-year warranty.
Product Advantages
- Extremely low profile and easy installation
- Cool to the touch with high brightness and excellent color rendition
- Wide selection of mounting hardware, accessories, and LED drivers
Electrical Specifications
- Features highly efficient SMD 3528 chip technology
- Integral switch with push on/push off functionality
- Operates at 24V DC (driver required)
- Available with plug-in electronic or hard-wired magnetic drivers
Mounting Options
- Includes mounting hardware and couplers
- Designed with polycarbonate caps and universal feed-through mono-pin receptacle
Lighting Specifications
- Available color temperatures: 3000K (warm white) and 6000K (cool white)
- For interior use only, with ambient temperature range of –20°C (4°F) to +40°C (104°F)
- Maximum continuous run: 24W (5” sections)
- Dimmable with magnetic low voltage transformers
Housing Specifications
- Ultra-low profile design, only 1/4” deep
- Constructed with extruded aluminum and a white powder coat finish
- Equipped with a smooth white acrylic lens (0.125” thickness) for even light distribution
Certifications and Warranty
- UL-listed for compliance and safety
- Backed by a 5-year warranty for long-term reliability
RESOURCES AND DOWNLOADS
SKU | WM-UCW32 |
---|---|
Weight | 24.00 LBS |
Light Source | LED |
Fixture Size | 32" Linear |
Driver Type | 24V DC |
Lumen Output | 590lm-640lm |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 6000K |
Total Input Watts | 8W |
Lumen Output | 590 |
Voltage | 12VDC |
Listings and Ratings | UL |
Lumen Output | 640 |
