MAXIMUM-FEATURE Area Flood 200/250/300W 30/40/50K T3 Rotatable Photocell And SENSOR-READY 480V

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

MAXIMUM-FEATURE Area Flood 200/250/300W 30/40/50K T3 Rotatable Photocell And SENSOR-READY 480V

$336.74
MSRP: $379.78
You save $ 43.04 (11%)
  • SKU: WM-LFXMAX-XL-200-300W-MCTP-PSR-480V
  • UPC: 840378301855
  • MPN: LFXMAX-XL-200-300W-MCTP-PSR-480V

Quick Overview

MAXIMUM-FEATURE Area Flood 200/250/300W 30/40/50K T3 Rotatable Photocell And SENSOR-READY 480V (wattage: 200W/250W/300W; lumens: 43500; efficacy: 145LM/W; CCT: 30K/40K/50K; voltage: AC277-480V)

WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 243
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

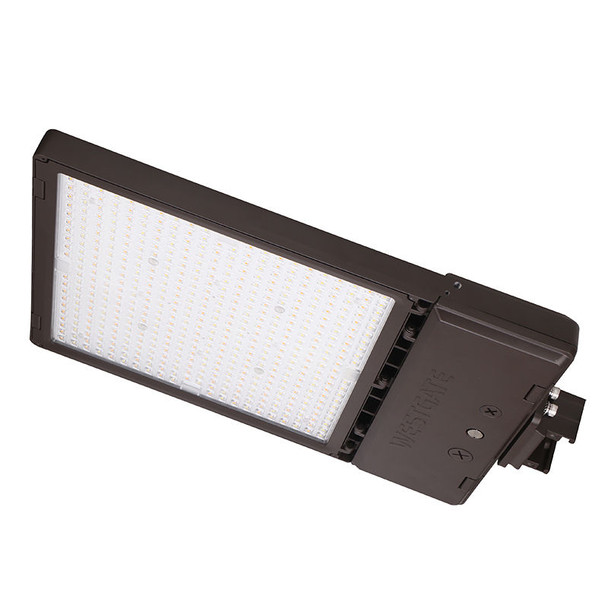

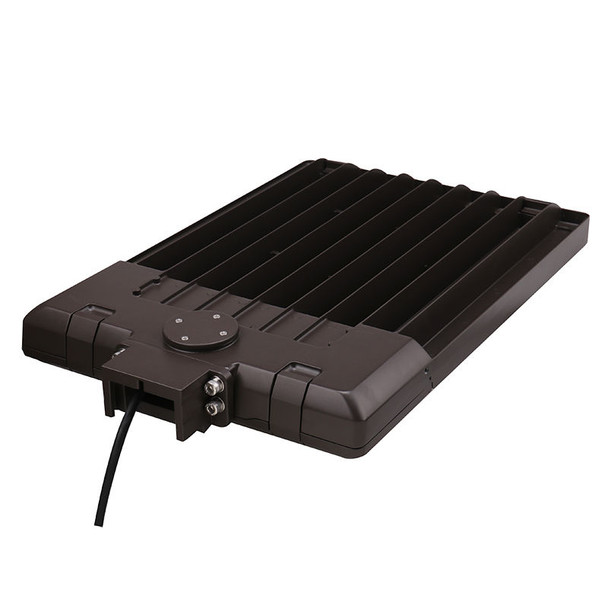

Westgate Manufacturing LFXMAX XL 200-300W Outdoor Flood Light

The LFXMAX XL 200-300W by Westgate Manufacturing is an unparalleled choice for exterior illumination, offering expansive light coverage and customizable settings for various applications, effectively enhancing landscapes, pathways, parking areas, and more. This robust fixture combines versatility, efficiency, and durability to meet the highest lighting standards.

Key Features and Benefits

  • Selectable Wattages: Choose from 200W, 250W, or 300W based on your lighting needs.
  • Multiple Color Temperatures: Available in 3000K, 4000K, and 5000K to create the desired ambiance.
  • High Efficacy: Provides an impressive efficacy of 145 lumens per watt, ensuring maximum brightness with minimal energy consumption.
  • Durable Construction: Die-cast aluminum housing with a powder coat finish for enhanced durability and weather resistance.
  • Lightning Surge Protection: Equipped with 10KV lightning surge protection for added safety.
  • Weatherproof: IP65 rating ensures reliable operation even in wet locations.
  • Dimmable: 0-10V dimming capability for customizable lighting control.
  • Rotatable Lens: Adjust the lens to precisely direct light where it is needed.
  • Warranty: Comes with a commendable 7-year warranty for peace of mind.

Technical Specifications

  • Voltage: 480V AC/50~60 Hz
  • Power Factor: Greater than 0.9
  • Lumen Outputs: 29000LM (200W), 36250LM (250W), 43500LM (300W)
  • Operational Temperature: -40°F to 104°F
  • Color Rendering Index (CRI): 80 or greater
  • Beam Angle: 155°x75° Type III
  • Lifespan: 70,000 hours of reliable performance
  • Effective Projected Areas (EPA): Front = 0.38 ft², Side = 0.30 ft², Face = 1.05 ft²

Common Uses

This flood light is ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. It is also perfect for replacing existing HID flood lights or wall packs.

RESOURCES AND DOWNLOADS

LFXMAX XL 200-300W Spec Sheet

Westgate Resources and Downloads
