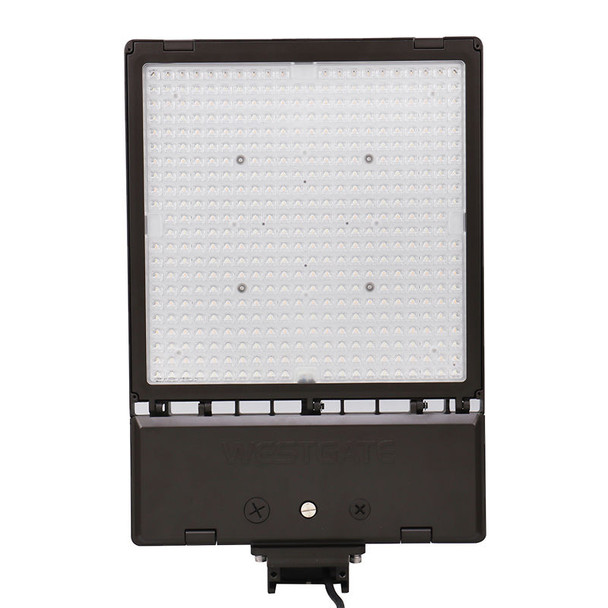

MAXIMUM-FEATURE Area Flood 70/100/150W 30/40/50K T3 Rotatable Photocell And Sensor Ready 480V

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

MAXIMUM-FEATURE Area Flood 70/100/150W 30/40/50K T3 Rotatable Photocell And Sensor Ready 480V

$226.74
MSRP: $255.78
You save $ 29.04 (11%)
  • SKU: WM-LFXMAX-LG-70-150W-MCTP-PSR-480V
  • UPC: 840378301848
  • MPN: LFXMAX-LG-70-150W-MCTP-PSR-480V

Quick Overview

MAXIMUM-FEATURE Area Flood 70/100/150W 30/40/50K T3 Rotatable Photocell And Sensor Ready 480V (wattage: 70W/100W/150W; lumens: 21400; efficacy: 145LM/W; CCT: 30K/40K/50K; voltage: AC277-480V)

UL Listed
DLC Premium
WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 300
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Versatile and Efficient Flood Lighting Solution

The WM-LFXMAX-LG-70-150W-MCTP-PSR-480V is a highly versatile flood light designed to meet a variety of lighting needs. Featuring selectable wattage options (70W, 100W, 150W) and adaptable color temperatures (3000K, 4000K, 5000K), this flood light delivers up to 21,400 lumens and boasts an impressive efficacy of 145 lumens per watt. Engineered with a rotatable lens for precise lighting, this unit ensures optimal illumination for any outdoor space.

Key Features and Benefits

  • Multi-wattage (70W/100W/150W) and multi-color temperature (3000K/4000K/5000K)
  • High efficacy of 145 lumens per watt
  • Rotatable lens for targeted lighting
  • Durable die-cast aluminum housing with powder coat finish
  • 10KV lightning surge protection for enhanced durability
  • IP65 rating, making it suitable for wet locations
  • 7-year warranty for peace of mind
  • 0-10V dimmable capability for customizable brightness
  • Various mounting options available (sold separately)

Technical Specifications

  • Voltage: 480V AC/50~60 Hz
  • Wattage: Selectable 70W/100W/150W
  • Power Factor: >0.9
  • Lumen Output: Up to 21,400 lumens
  • Color Temperature: Selectable 3000K/4000K/5000K
  • Color Rendering Index (CRI): ≥80
  • Beam Angle: 155°x75° Type III
  • Operating Temperature: -40°F to 104°F
  • Lifespan: 70,000 hours

Ideal Applications

This flood light is ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. It is an excellent replacement for existing HID flood lights and wall packs.

Resources and Downloads

LFXMAX Series Spec Sheet
