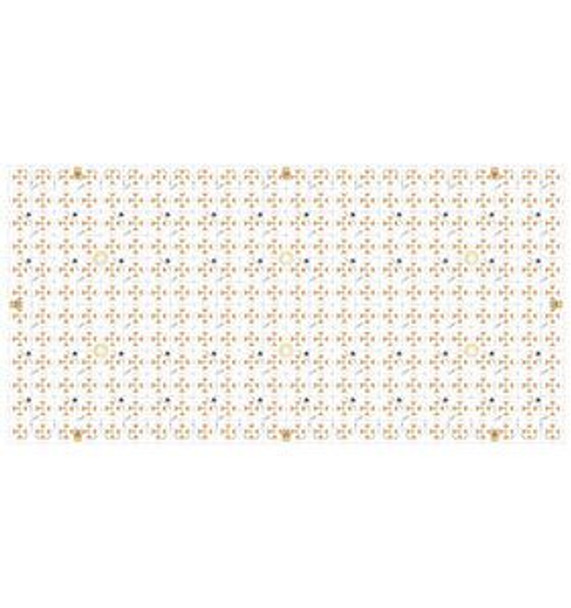

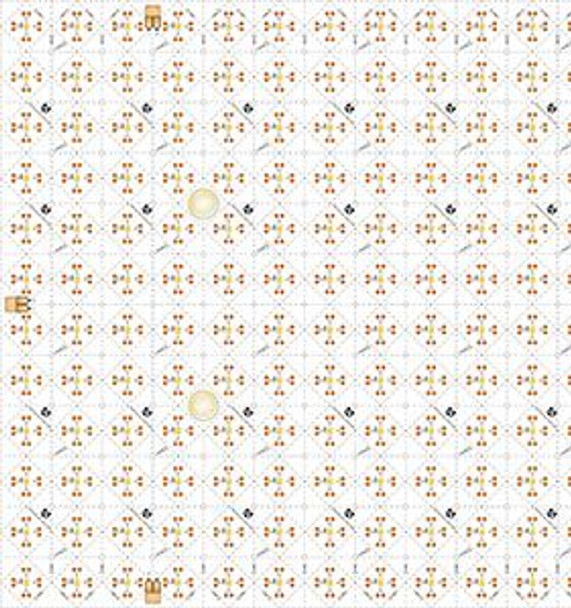

The American Lighting CANVAS Series 24V DC LED Light Sheet is a versatile and innovative lighting solution, perfect for creating seamless and uniform illumination in various applications. This 12x24 inch sheet is especially suited for backlighting semi-transparent materials, offering a 3000K warm white color temperature and up to 1925 lumens of brightness per sheet.
Key Features and Benefits
- High CRI of 90+ for accurate color rendering
- Field cuttable design allows for on-site customization
- IP54 rating ensures protection against dust and splashing water
- Dimmable from 5 to 100% for versatile lighting options
- Efficient 20W energy consumption per sheet
- cULus Listed for safety and reliability
Specifications
- Power: 20W per sheet
- Lumens: Up to 1925Lm per sheet
- Color Temperature: 3000K
- Maximum Run: 96W (4-1/2 Sheets Total)
- Beam Angle: 120°
- Operating Temperature: -20°C to 45°C
Common Uses
Ideal for backlighting countertops, architectural features, and for use in areas where a custom lighting solution is needed.
RESOURCES AND DOWNLOADS
| SKU | AL-CNVS-WW-12x24 |
|---|---|
| Weight | 9.00 LBS |
