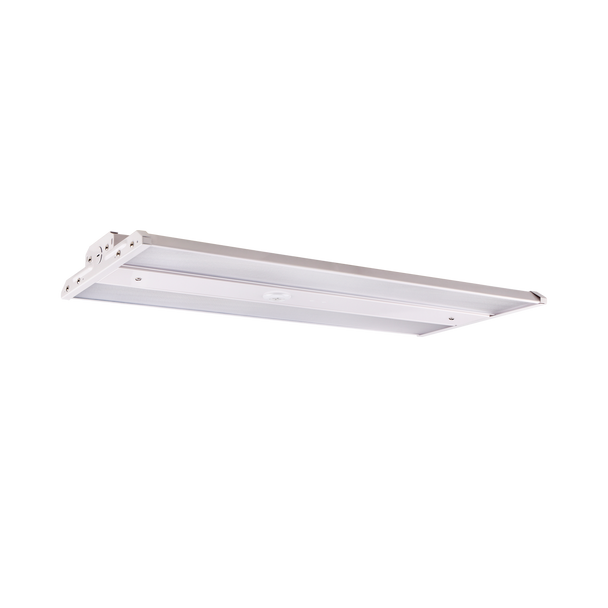

LHB4 Series Linear High Bay, 90W, 4000K, 120-347V

By Eiko Global
LHB4 Series Linear High Bay, 90W, 4000K, 120-347V

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LHB4 Series Linear High Bay, 90W, 4000K, 120-347V

$324.45 - $566.15
  • SKU: E-LHB4-904-3
  • MPN: LHB4-904-3

Quick Overview

90W linear LED high bay delivering 12,200 lumens at 136 lm/W with 4000K output, 120-347V operation, and 0-10V dimming. Ideal for warehouses, industrial spaces, gyms, garages, and commercial high-ceiling applications.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Premise LHB4 Series Linear High Bay is a high-efficacy fixture engineered for demanding indoor high-ceiling environments. Designed as an energy-saving replacement for fluorescent and HID high bays, this 90W configuration balances strong output with broad voltage compatibility. It is a core option in the LHB4 lineup for commercial and industrial lighting upgrades.

Key Features and Benefits

  • High-performance output of 12,200 lumens with up to 136 lm/W for reduced energy costs
  • Wide 120-347V input range supports diverse electrical infrastructures
  • Integrated 0-10V dimming (down to 10%) enables better lighting control and additional savings
  • Pre-corded with a 10' white whip and includes chain hanging kit for faster installation
  • Sensor-ready design with receptacle for plug-and-play PIR or microwave controls
  • Backed by a 5-year warranty for long-term project confidence
  • Certified for safety and compliance: cULus listed and RoHS compliant

Specifications

  • Model: LHB4-904-3
  • Power: 90W
  • CCT: 4000K
  • Delivered lumens: 12,200 lm
  • Efficacy: 136 lm/W
  • Input voltage: 120-347V
  • Housing: White powder-coated stamped steel with polycarbonate diffuser
  • Dimming: 0-10V, dim to 10%
  • Power factor: >0.9; THD: <20%
  • Operating temperature: -40 C to 50 C (-40 F to 122 F)
  • Dimensions: 24-13/16" L x 11-13/16" W x 1-7/8" H
  • Weight: 3.5 kg / 7.7 lbs
  • Five 1/2" NPT knockouts for controls or daisy chaining
  • Rated life: >50,000 hours (L70)

Common Uses

Ideal for warehouses, manufacturing facilities, gymnasiums, garages, corridors, retail back-of-house areas, and other indoor commercial or industrial spaces with higher mounting heights.

RESOURCES AND DOWNLOADS

LHB4 Series Linear High Bay Spec Sheet
