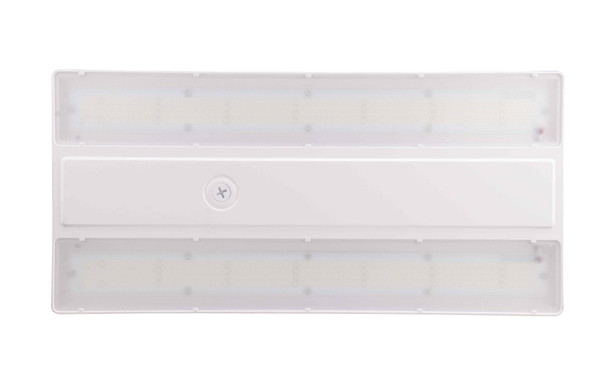

EiKO LH1 Linear High Bay, 90W, 4000K, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO LH1 Linear High Bay, 90W, 4000K, 120-277V

$69.20
  • SKU: E-LH1-090-40-U
  • MPN: LH1-090-40-U

Quick Overview

EiKO LH1 90W linear high bay delivers 13,500 lumens at 150 lm/W with 4000K light, 0-10V dimming, and controls-ready sensor receptacle for warehouses, retail, and industrial high-ceiling spaces.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO LH1 Linear High Bay is a performance-driven fixture series designed for demanding commercial and industrial interiors. Built with a die-cast aluminum body and integrated thermal management, this 90W configuration provides efficient, uniform illumination for high-mount applications. As part of EiKO’s high bay lineup, the LH1 combines strong efficacy, controls flexibility, and long service life.

Key Features and Benefits

  • Delivers high-output illumination with excellent efficacy up to 150 lm/W to help reduce energy costs.
  • Controls-ready design with screw-in receptacle simplifies future sensor or networked control upgrades.
  • Frosted polycarbonate lens helps reduce glare for improved visual comfort in active work areas.
  • Durable die-cast aluminum housing with molded heatsink fins supports reliable thermal performance.
  • DLC Premium qualification and UL listing support utility rebate eligibility and code confidence.
  • Backed by a 5-year limited warranty for long-term peace of mind.

Specifications

  • Wattage: 90W
  • Light output: 13,500 lm
  • CCT: 4000K
  • Input voltage: 120-277V
  • CRI: >80
  • Beam angle: 90°
  • Dimming: 0-10V dim-to-off
  • Power factor: >0.9; THD: <20%
  • Surge protection: up to 6kV
  • L70 life: 100,000 hours (estimated)
  • Ambient operating temperature: -40°F to 122°F (-40°C to 50°C)
  • Mounting hardware included: V-hook and aircraft cables (6.5')

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, grocery stores, gymnasiums, indoor recreational facilities, cold storage areas, big box retail, and service repair centers.

RESOURCES AND DOWNLOADS

EiKO LH1 Linear High Bay Spec Sheet
