Description

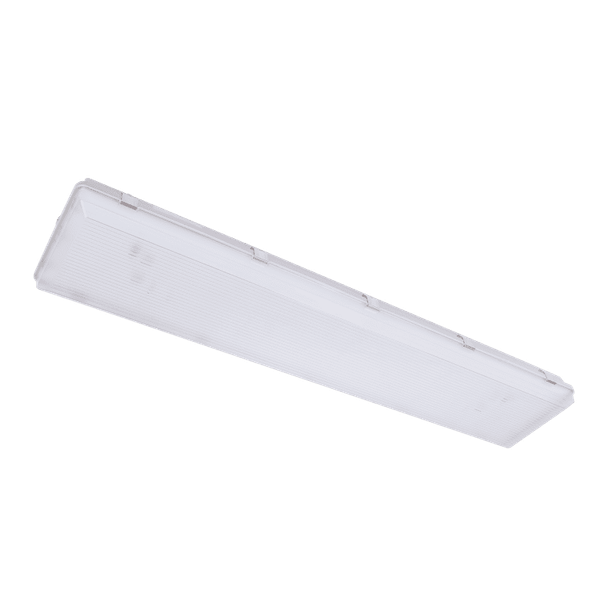

The EiKO VPHB1 Vapor Proof High Bay is a durable linear fixture engineered for demanding commercial and industrial environments. Built for moisture, dust, and impact resistance, this model is a key solution in EiKO’s high-performance vapor-tight lineup for reliable long-term illumination.

Key Features and Benefits

High-output performance delivering strong illumination with excellent energy efficiency for utility and industrial spaces
Rugged environmental protection with IP66 ingress rating, IK10 impact resistance, and NEMA 4X corrosion resistance
Flexible installation support with included V-hooks, surface-mount clips, and cable gland for sealed power entry
Smooth 0-10V dimming compatibility for energy savings and control integration
Certified for quality and compliance: ETL Listed, RoHS, FCC, ICES-005, and DLC Premium
Backed by a 5-year limited warranty for dependable operation

Specifications

Lumen Output: 19848
Wattage: 150W
Input Voltage: 120-347V
Color Temperature: 4000K
CRI: 80+
Efficacy: 132 lm/W
Beam Angle: 110°
Rated Life (L70): 100000 hours
Power Factor: >0.9
THD: <20%
Operating Temperature: -40°C to 40°C
Dimensions: 50" L x 10.375" W x 4.5" H
Housing Material: Polycarbonate (gray)
Lens Material: Polycarbonate
Weight: 13.8 lbs

Common Uses

Ideal for parking garages, barns, warehouses, utility areas, low-bay applications, and other industrial or commercial locations exposed to moisture, dust, and harsh operating conditions.

RESOURCES AND DOWNLOADS

EiKO VPHB1 Vapor Proof High Bay Spec Sheet

Details

Beam Angle:	110°
CRI:	80
Certifications:	ETL Listed, FCC, RoHS, DLC Premium
Color Temperature:	4000K
Dimming Type:	0-10V
Distribution Type:	Direct
Driver Type:	Fixed Output
Efficacy (lm/W):	132
Finish / Color:	Gray
Form Factor:	Linear
Housing Material:	Polycarbonate
IK Rating:	IK10
IP Rating:	IP66
Lens Material:	Polycarbonate
Light Source:	Integrated LED
Lumen Output:	19848
Max Ambient Temperature:	40°C
Output Voltage Range:	12VDC
Power Factor:	0.9
Primary Material:	Polycarbonate
Rated Life (70 Hours):	100000
THD:	20
Voltage:	120-347V
Warranty (Years):	5
Wattage:	150W
Wet Rated:	true
