Description

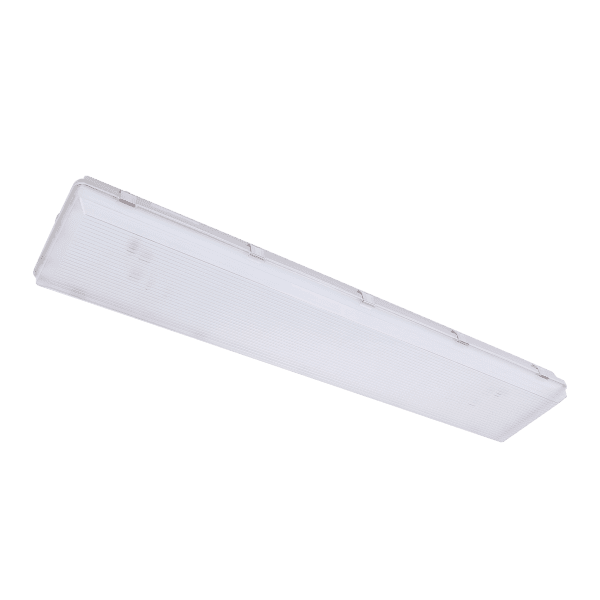

The EiKO VPHB1 Vapor Proof High Bay is a durable linear fixture engineered for demanding commercial and industrial environments where moisture, dust, and impact resistance are critical. As part of EiKO’s high-performance vapor-tight lineup, it combines strong lumen output, high efficacy, and robust environmental protection for long-term reliability.

Key Features and Benefits

Delivers powerful illumination with high efficacy performance to reduce energy costs in large spaces.
Built for harsh conditions with IP66 ingress protection, IK10 impact resistance, and NEMA 4X corrosion resistance.
Flexible installation with included V-hooks, surface-mount clips, and cable gland for sealed power entry.
Supports advanced lighting control strategies with 0-10V dimming and optional sensor compatibility.
Certified for quality and compliance with ETL, FCC, RoHS, ICES-005, and DLC Premium qualifications.
Backed by a 5-year limited warranty for added project confidence.

Specifications

Lumen Output: 30392
Wattage: 200W
Input Voltage: 120-347V
Color Temperature: 4000K
CRI: >80
Efficacy: 147 lm/W
Beam Angle: 105°
Rated Life (L70): 100000 hours
Power Factor: >0.9
THD: <20%
Operating Temperature: -40°F to 104°F (-40°C to 40°C)
Housing Material: Polycarbonate (gray)
Lens Material: Polycarbonate
Dimensions: 50" L x 10.375" W x 4.5" H
Weight: 15.1 lbs

Common Uses

Ideal for parking garages, warehouses, barns, utility areas, low-bay applications, and other industrial or commercial locations requiring sealed, high-output lighting.

RESOURCES AND DOWNLOADS

EiKO VPHB1 Vapor Proof High Bay Spec Sheet

Details

Beam Angle:	105°
CRI:	80
Certifications:	ETL Listed, FCC, RoHS, DLC Premium
Color Temperature:	4000K
Dimming Type:	0-10V
Driver Type:	Fixed Output
Efficacy (lm/W):	147
Finish / Color:	Gray
Form Factor:	Linear
Housing Material:	Polycarbonate
IK Rating:	IK10
IP Rating:	IP66
Lens Material:	Polycarbonate
Light Source:	Integrated LED
Lumen Output:	30392
Max Ambient Temperature:	40°C
Output Voltage Range:	12VDC
Power Factor:	0.9
Primary Material:	Polycarbonate
Rated Life (70 Hours):	100000
THD:	20
Voltage:	120-347V
Warranty (Years):	5
Wattage:	200W
Wet Rated:	true
