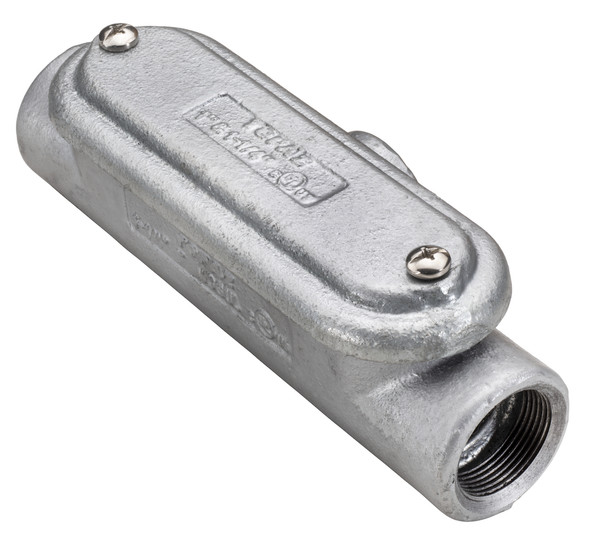

The Garvin Industries MT7CGHDG is a robust 2-1/2" T type mogul conduit body, designed for demanding electrical installations. Built from hot dip galvanized malleable iron, it features a raised cover and gasket for superior protection in wet locations. This conduit body stands out in the Southwire lineup for its large internal volume and rugged durability, making it ideal for pulling, splicing, and tapping large conductors.

Key Features and Benefits

• Hot dip galvanized malleable iron construction for maximum durability
• Includes raised cover, neoprene gasket, and stainless steel screws for a watertight seal
• Threaded NPT tapered hubs compatible with Rigid and IMC conduit
• Large 163 in³ internal volume accommodates up to 300 MCM conductors
• Integral hub bushings protect conductor insulation
• c(UL)us listed for wet locations and meets multiple industry standards

Specifications

• Size: 2-1/2"
• Internal Volume: 163 in³
• Max Conductor Size: 300 MCM
• Material: Malleable iron, hot dip galvanized
• Cover: Raised, with neoprene gasket
• Certifications: UL 514A, UL 514D, Fed. Spec W-C-586D, NEMA 3R
• Dimensions: 18.39" L x 15" W x 3.41" H

Common Uses

Perfect for commercial and industrial electrical installations, especially where large conductors are used and frequent access for pulling, splicing, or tapping is required. Ideal for wet locations and tough environments.
