MAXIMUM-FEATURE Area Flood 200/250/300W 30/40/50K T3 Rotatable Photocell And SENSOR-READY

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

MAXIMUM-FEATURE Area Flood 200/250/300W 30/40/50K T3 Rotatable Photocell And SENSOR-READY

$277.74
MSRP: $312.78
You save $ 35.04 (11%)
  • SKU: WM-LFXMAX-XL-200-300W-MCTP-PSR
  • UPC: 840378301831
  • MPN: LFXMAX-XL-200-300W-MCTP-PSR

Quick Overview

MAXIMUM-FEATURE Area Flood 200/250/300W 30/40/50K T3 Rotatable Photocell And SENSOR-READY (wattage: 200W/250W/300W; lumens: 43500; efficacy: 145LM/W; CCT: 30K/40K/50K; voltage: AC120-277V)

WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 20
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

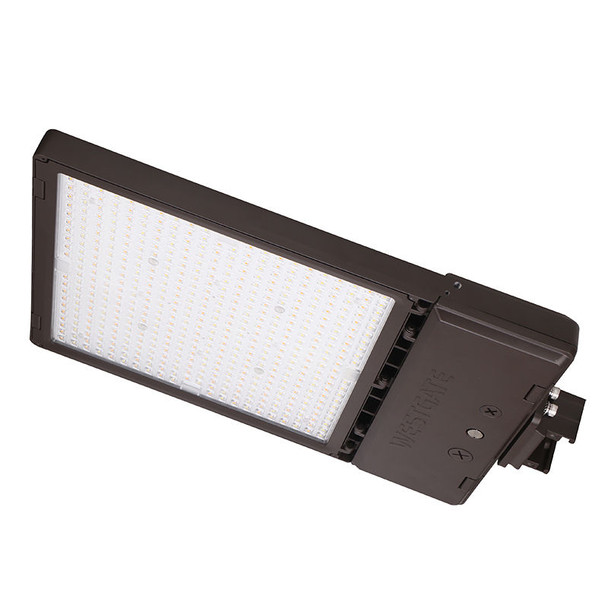

Enhanced Versatility and Efficiency with LFXMAX XL Flood Light

The LFXMAX XL Flood Light by Westgate stands at the pinnacle of outdoor lighting solutions, designed for maximum versatility and efficiency. Featuring selectable wattage and color temperature, it offers a rotatable lens for precise lighting, making it ideal for various outdoor applications. This highly efficient flood light can seamlessly illuminate general site lighting, alleys, loading docks, doorways, pathways, and parking areas, replacing existing HID flood lights and wall packs.

Key Features and Benefits

  • Selectable wattage: 200W, 250W, 300W for customizable energy consumption.
  • Adjustable color temperature: 3000K, 4000K, 5000K to suit different lighting needs.
  • High efficacy of 145 LPW, providing up to 43500 lumens for superior illumination.
  • Utilizes Lumileds Luxeon 2835 High Flux LED for enhanced durability.
  • Durable die-cast aluminum housing with a powder coat finish for long-lasting performance.
  • IP65 rating, ensuring suitability for wet locations.
  • Rated life of 70,000 hours for prolonged usage.
  • DLC Premium certified, ensuring high-quality standards.
  • Comes with a 7-year warranty for peace of mind.

Technical Specifications

  • Voltage: 120~277V AC/50~60 Hz to accommodate different power requirements.
  • Power Factor: Greater than 0.9 for high energy efficiency.
  • Operating Temperature: -40°F to 104°F for versatility in different climates.
  • Equipped with 10KV lightning surge protection for added safety.
  • Optic Lens Type: III for focused lighting distribution.
  • Beam Angle: 155°x75° Type III for wide coverage.
  • Effective Projected Areas (EPA’s): Front = 0.38 ft², Side = 0.30 ft², Face = 1.05 ft².
  • Cord Type: 6’ SJTW 18/3 AWG cable for easy installation.
  • Dimmable: 0~10V for adjustable light output.

Common Uses

This flood light is perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. It efficiently replaces existing HID flood lights and wall packs, offering a superior lighting solution.
