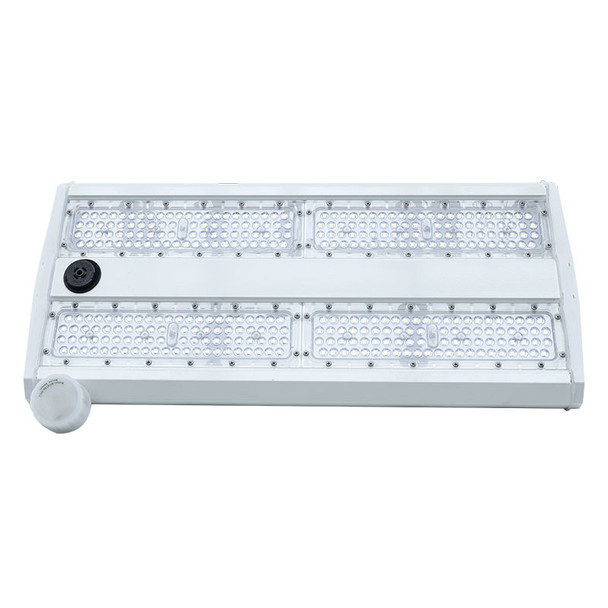

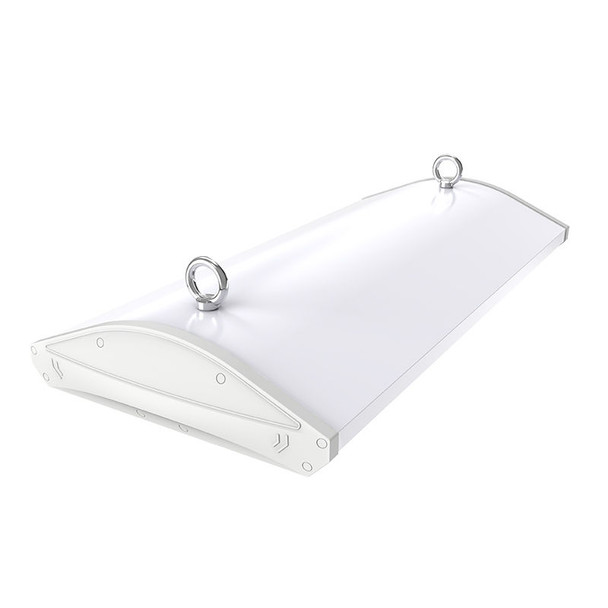

Linear NSF Food Highbay, 120-200W, 3CCT, Sensor Ready

High-Efficiency Linear NSF Food Highbay

Introducing the top-of-the-line High-Efficiency Linear NSF Food Highbay, designed to deliver superior lighting solutions for food processing, commercial kitchens, and other hygiene-critical environments. This high bay fixture offers selectable wattage (120W/160W/200W) and color temperatures (3500K/4000K/5000K) with adjustable lumen outputs up to 30,000LM. Ideal for environments that demand strict hygiene standards, it is NSF certified and IP69 rated for exceptional durability.

Key Features and Benefits

• Equipped with high-quality LED chips for remarkable efficiency, optimal heat dissipation, and superior lumen maintenance.
• Features a high flame-retardant polycarbonate lens for added safety.
• Frosted lens design effectively reduces glare, enhancing visual comfort.
• Durable and long-lasting with a 50,000-hour rated life.
• Comes with a reliable 5-year warranty for peace of mind.
• Offers selectable wattage options: 120W, 160W, and 200W, to meet various lighting needs.
• Flexible color temperature settings: 3500K, 4000K, and 5000K, providing optimal lighting for different environments.
• Boasts a high efficacy of 150 LPW (lumens per watt).
• NSF certified ensuring suitability for food safety standards.
• IP69 rated for complete protection against dust and high-pressure water jets.

Technical Specifications

• Voltage: 120~277VAC/50~60 Hz ensuring compatibility with a wide range of electrical systems.
• Total lumen output: Up to 30,000LM.
• Color Rendering Index (CRI): >80, for high-quality light reproduction.
• Variety of beam angles: 15°, 25°, 40°, 60°, 90°, 120°, 30x15°, 49x21°, 136x78° to suit different lighting needs.
• Operating temperature range: -22°F to 113°F, designed to perform in diverse environments.
• Dimensions: 9.84"(H) x 21.91"(W) x 2.41"(D).

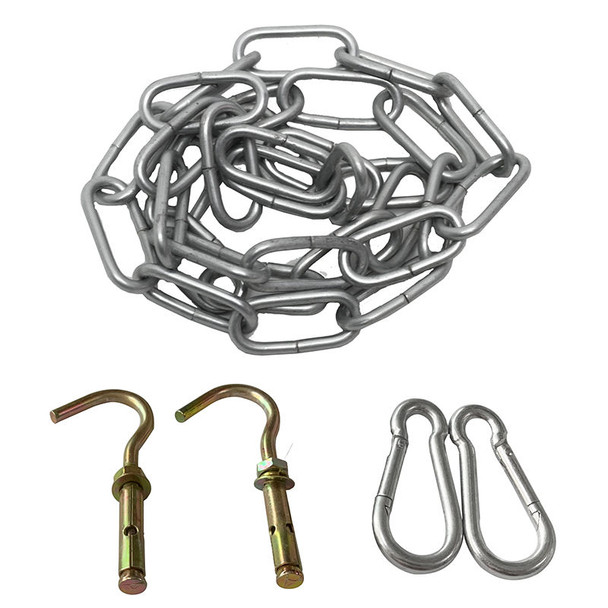

• Easy to install with included suspension mount, hanging chains, and rings.

Common Uses

This versatile lighting solution is perfect for food processing facilities, cold storage rooms, commercial kitchens, pharmaceutical manufacturing, clean rooms, and warehouses that require stringent hygiene standards.

Resources and Downloads

Linear NSF Food Highbay Spec Sheet
